| US$2,999.00-3,999.00 | 1 Piece (MOQ) |

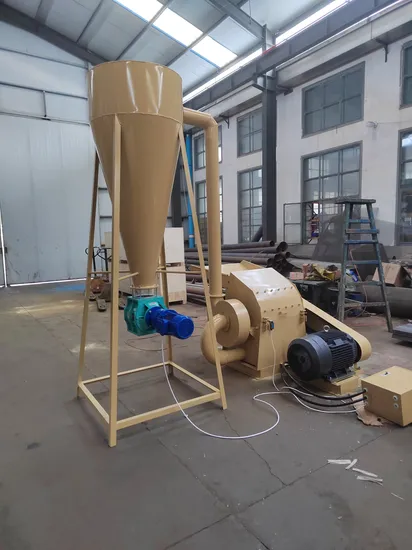

| The hammer mill is fixed with an engine with a power of electric. Its working principle is: after the raw materials were put into crushing chamber, the high-speed operated hammer sheets will impact the raw materials over and over again, then the raw materials will be crushed into pre-set size step-by-step. The sieve have the following size: 1.5mm, 2mm, 4mm and 6mm. Then the crushed materials will leak out from the sieve. The draught fan will convey the leaked materials into separator centrifuge, finally, the powder will be discharged down. |
| 1. Hammer mill is new- style and multipurpose machine, it is used for all kinds of straw, cotton stalk, alfalfa, peanuts shell and foodstuffs etc. | ||
| 2. CF560 hammer mill can be driven by both electrical motor and gasoline engine, you can choose which you prefer. | ||
| 3. CF560c is driven by the electrical motor, 11kw, 380v, three phase. | ||
| 4. The capacity of CF560C is 1500-2500kg/h, it is suitable for home use. | ||
| 5.It has simple construction, convenient operation, high efficiency and low power consumption. | ||
| 1. With capacity 200-600kg/h, this hammer mill can satisfy a large production demand on a daily basis. 2. The ability to change screen size, and the option of a variable speed frequency drive control, enable processing a variety of materials using the same hammer mill. 3. Both coarse and fine grinding can be realized through adjusting the gap between hammers and screen. 4. The core part ---the hammer flake is scientifically designed to have two concussion parts, thus when one part is worn out, you can turn over to use the other part. 5. The angle of the screen can be 180° which allows for high throughput at lower power consumption. 6. Equipped with air blower, the crushed material can be directly collected and transported to next machine for further processing. |
| Model | Power | Voltage V/50Hz | Sieve Screen Size | Sieve Screen Size | Capacity(T/H) |
| CF550 | 30KW | 380V | 560*280mm | 1.5-10mm | 1.5-2.5 |
| CF560 | 37KW | 380V | 580*280mm | 2-10mm | 2-2.5 |
| CF600 | 45KW | 380V | 680*280mm | 2-10mm | 2.5-3.5 |
| CF800 | 55kw | 380V | 880*280mm | 2-10mm | 3-4 |
| The Hammer Mill Cutter and Sieve Wood hammer mills are able to crush both forestry and agricultural material, brittle and fibrous material, such as bamboo, stalk, grass and shrub. A screen with cutting edges is used to control the wood particle size. If the size is larger than screen, these material will be sent back to be grinded again until they can get though the screen. The size of the grinded material depend on the size of screen and the rotation speed. |
| Choose a reliable wood hammer mill manufacturer. Machines look all same outside. So the quality will be more or less similar. Please change your views right now. Wood hammer mill from small workshop must be much more cheap compared with these mills from larger factories, however, the texture of metal will be a tremendous difference. In general, stainless steel 4Cr13 means the carbon content is 0.4% and chrome content is 13%. The higher the carbon content and lower chrome content, the easier the metal to be oxidized. |
| What kind of raw material is suitable for the Small Pellet Press Machine ? A: All kinds of biomass waste, such as sawdust, wood branch, straw, coconut shell, corn, straw, grain,soybean and etc.Any requirements on materials?A: Ideal size of the raw material should be 1-5mm, ideal moisture of the powder should be 10%-20%What kind capacity do you have?A: 40-60kg/h,120-200kg/h, 180-250kg/h, 300-400kg/h, 400-500kg/h and 500-600kg/h,600-800kg/h and etc.Can I visit your factory, where is your factory located?A: Yes, sure, welcome to visit our factory at any time, we are in Laizhou city. Shandong province,China About the installation, can you help us to install them?A: Yes, sure, we can sent technical personnel to the scene of the on-the-spot guidance equipment installation, debugging and training operators,Any further question, please be free to contact me by phone, email, whatsapp etc. |
