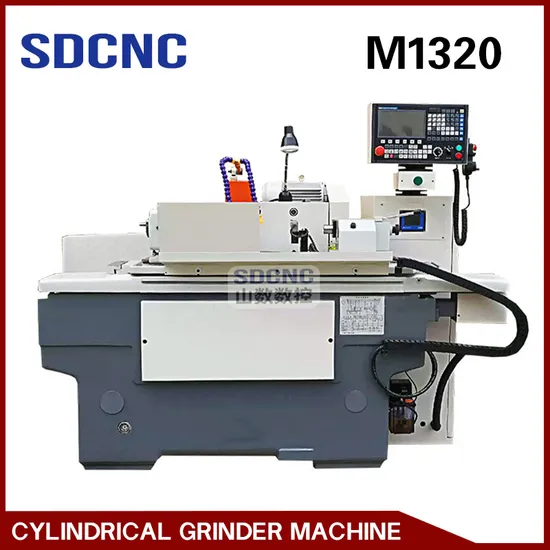

| Cylindrical grinding machine | M1320-1000 |
| Diameter of grinding | Dia.8~200mm |
| Maximum grinding length | 1000mm |
| Maximum spindle load-bearing | 50kg |
| Maximum travel of working table | 1080mm |
| Speed of working table | 100~4000mm/r/min |
| Rotary angel of working table | -3~+7° |
| Rotary angel of headstock | -30~90° |
| Rotary angel of grinding wheel | 180° |
| Center height | 125mm |
| Center sleeve taper | 3# |
| Grinding wheel size | 400*40/50*203 |
| Speed of headstock | 60,85,230,120,170,460r/min |
| Speed of grinding wheel | 1780r/min |
| High-speed travel of grinding wheel | 20mm |
| Maximum travel of grinding wheel | 150mm |
| Feeding rate of grinding wheel handwheel per grid | 0.005mm |
| Feeding rate of grinding wheel handwheel per rev | 1mm |
| Power of grinding wheel motor | 4kw |
| Power of headstock motor | 0.25/0.37kw |
| Power of oil pump motor | 0.75kw |
| Power of cooling motor | 0.125kw |
| Dimension (length * width * height) | 3100*1450*1650 |
| Weight | 3000kg |
| Roundness 0.002mm Cylindricity 0.003mm Roughness Ra0.32 |
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed and other machine tools.
