Product Details
Product Description
Product Description
Titanium block is a new important structural material used in the aerospace industry, but the control of cutting heat such as aerospace titanium rods, the maximization of the spindle connection strength and the dynamic stiffness of the tool system are the keys to improving the cutting performance level of titanium alloys, factors and important safeguards.

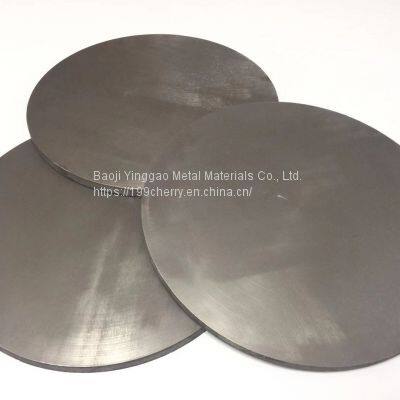

Name: Titanium Block
Density: 4.51g/cm3
Standard: ASTM B265, ASTM F67/F136 ISO 5832 AMS 4928 AMS4911 ASTM B348 ASTM B381
Grade: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, Gr11, Gr12, Gr23 etc
Surface: Polished, Machining
Sizes:
Length: 20-1000mm
Width:10-500mm
Height:20-200mm
Shape: Square, Round, Flat
Processing Mode: Forging/Rolling/Grinding Material Milling
Application:
Aerospace, Industry, Navigation, Artificial bones;
Textile printing and dyeing;
Sporting products;
Electroplating equipment;
Machining field, Automobile field;
Axis machining, the frame of the planes;
The equipment used in the sea water;
Heat exchangers and condensers;
Construction industry etc.
Feature:
1.High density；
2.Good mach-inability；
3.Good mechanical properties；
4.High Modulus of elasticity；
5.High absorption capacity against x-rays and y-rays；
6.Harmless and environment friendly.
Chemical composition
|
|
| N
| C
| H
| Fe
| O
| Al
| V
| Pd
| Mo
| Ni
|
|
Gr 1
| 0.03
| 0.08
| 0.015
| 0.20
| 0.18
| /
| /
| /
| /
| /
|
|
Gr 2
| 0.03
| 0.08
| 0.015
| 0.30
| 0.25
| /
| /
| /
| /
| /
|
|
Gr 3
| 0.05
| 0.08
| 0.015
| 0.30
| 0.35
| /
| /
| /
| /
| /
|
|
Gr 5
| 0.05
| 0.08
| 0.015
| 0.40
| 0.20
| 5.5~6.75
| 3.5~4.5
| /
| /
| /
|
|
Gr 7
| 0.03
| 0.08
| 0.015
| 0.30
| 0.25
| /
| /
| 0.12~0.25
| /
| /
|
|
Gr 9
| 0.03
| 0.08
| 0.015
| 0.25
| 0.15
| 2.5~3.5
| 2.0~3.0
| /
| /
| /
|
|
Gr12
| 0.03
| 0.08
| 0.015
| 0.30
| 0.25
| /
| /
| /
| 0.2~0.4
| 0.6~0.9
|
|
>>
