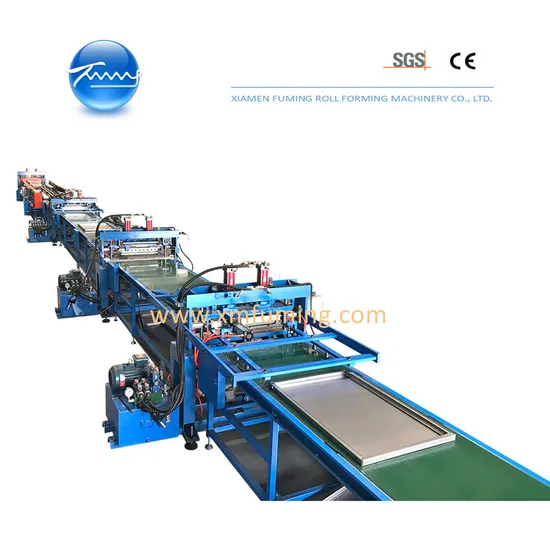

| ROLL FORMING MACHINE FOR SHELF MACHINE |
|
| Material Specification |
| Thickness | 0.7mm |
| Material | GI |
| Yield strength | 250MPa |
| Length | 1250-1500mm |
| |
| Machine Components |
| 5Ton*900mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.900mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| Option | Please refer to Decoiler on home page |
| |
| Servo Feed-in, Pre-leveling, Pre-Notching & Pre-punching Device |
| |
| Roll Forming Machine |
| Driving system | Gear/Sprocket driving |
| Roller material | 45# steel, hard chrome coated |
| Shafts Diameter | Φ75mm |
| Motor to drive | 11KW |
| Motor for size changing | 1.5KW |
| Line speed of rollformer | Approx. 15m/min or customized |
| |
| Hydraulic Post Cutting Device |
| |
| Powered Conveyor 1 |
| Length | 1.8 meters |
| Motor | 0.75KW |
| |
| Rivet Punching Device |
| |
| Powered Conveyor 2 |
| Length | 1.8 meters |
| Motor | 0.75KW |
| |
| End Bending Device(First Cut A) |
| Hydraulic station | 3KW |
| |
| Powered Conveyor 3 |
| Length | 1.8 meters |
| Motor | 0.75KW |
| |
| End Bending Device(First Cut B) |
| Hydraulic station | 3KW |
| |
| Powered Conveyor 4 |
| Length | 1.8 meters |
| Motor | 0.75KW |
| |
| End Bending Device(Second Cut A) |
| Hydraulic station | 3KW |
| |
| Powered Conveyor 5 |
| Length | 1.8 meters |
| Motor | 0.75KW |
| |
| End Bending Device(Second Cut B) |
| Hydraulic station | 3KW |
| |
| Powered Conveyor 6 |
| Length | 1.8 meters |
| Motor | 0.75KW |
| |
| Rivet Pulling Device (Top End) |
| Hydraulic station | 3KW |
| |
| Powered Conveyor 7 |
| Length | 1.8 meters |
| Motor | 0.75KW |
| |
| Rivet Pulling Device (Bottom End) |
| Hydraulic station | 3KW |
| |
| Powered Conveyor 8 |
| Length | 1.8 meters |
| Motor | 0.75KW |
| |
| PLC Control System |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2mm |
| Control Voltage | 24V |
