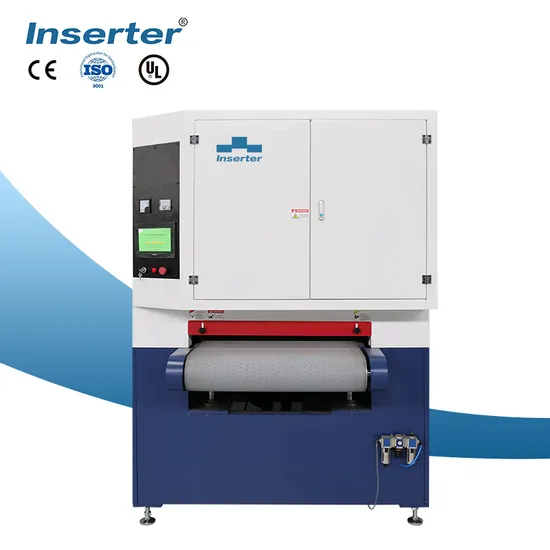

800sr Feeding Speed 1-6m/Min Edge Rounding with Deburring Sheet Metal Deburring Machine

Product Description

Product Features
01. Suitable For Flat Plate Parts, Carbon Steel Plate, Stainless Steel Plate, Aluminum Plate, Copper Plate
02. Suitable for all kinds of flat plate parts surface drawing,polishing, scratch removal, removal of longitudinal burr, oxidation skin, fixed thickness and other processing 03. Program storage function to achieve repeated processing result
04. Intuitive touchscreen HMI for easy operation
05. Sand belt correction function
06. Optional feeding mode
(1)Vacuum Negative Pressure Adsorption Conveying Feeding
(2)Strong Permanent Magnet Adsorption Conveying Feeding
(3)Conveyor Belt And Press Roller Feeding
Product Parameters

Model	SR-800
Power	22KW
Roller Brush Autobiographical Speed	8-20r/s
Minimum Processing Size	50*50mm(Vacuum adsorption)
Chamfer Range:R	0.1-0.5mm
Processing Thickness	0.5-80mm
Processing Width	800mm
Feeding Speed	1-6m/min
Spindle Speed	8-12r/s
Dust Removal Efficiency	80%
Voice	≤86dB
Belt Size	1900*820mm
Weight	3.5T

FAQ
FAQ
1. Who are we?
A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office.

2.How Long Does It Take for a Machine to Remove Burrs?
A: The time taken for the deburring process depends on the thickness and size of each sheet. A powerful machine can remove burrs quickly, but it requires skilled operators to safely.

3.When Should I Use a Deburring Machine?
A: Before finishing operations, you should use these machines for sharp metal objects that you want to
deburr. This will increase the smoothness of the cutting operation and improve your end product.

4. What are the functions of the device?
A: Suitable for flat plate parts,carbon steel plate,stainless steel plate,aluminum plate,copper plate,titanium alloy,all
kinds of non-ferrous metals,rubber and plastic materials.Suitable for all kinds of flat plate parts surface drawing,polishing,
scratch removal, removal of longitudinal burr, oxidation skin, fixed thickness and other processing.

5. How do we ensure the safety of workers?
A: Matching wet vacuum cleaner to treat grinding dust to achieve environmental protection.

---
