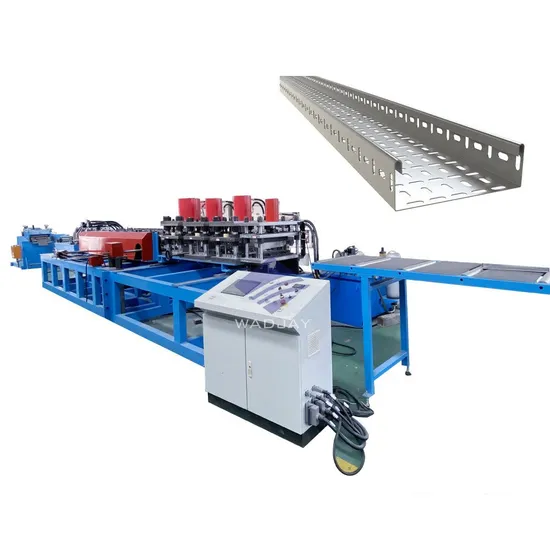

Low Cost Metal Steel Forming Cable Tray Roll Forming Machine with Servo Motor

Product Description

Product Description
- Customized cable tray roll forming machine
Cable tray production line be used to produce cable tray . through exchange punching tooling to finish producingdifferent specifications. One set of roller can make all specifications of cable tray.adjusting the width of roller to produce different width cable tray.
- Cold roll forming machine production line process
Uncoiling & Leveling → Automatic Cutting System → Roll Forming System → Punching Hole → Finished Product Rack
Details of Automatic Metal Cable Tray Roll Forming Machine Production Line:
- Roll forming system Material of the roller : High grade No.45 forged steel. Roller station : 12-14 rows. Thickness of feeding material : 0.3-0.8mm
- CNC control panel
Touchscreen roll form control system with PLC screen support and dozens of different language options.
Specifications of Automatic Metal Cable Tray Roll Forming Machine Production Line:
We customize the machine according to customer's requirements and can be used for a wide variety of profiles.

Item		Para	Memo
Suitable Material	Type	Hot rolled steel coil Galvanized steel coil
	Thickness	1.0mm -2.0 mm
	Yield Strength	235-300MPa
	Coil Width (mm)	227/327/427/527/627/727/827
Producing Speed		5-10 m/min	Including punching time & cutting time
Motor power of leveling device		5.5 KW
Motor power of servo feeding device		5.5 KW
Motor power of 200 tons punching device		18 KW
Main motor power		11KW*2
Hydraulic station power of Decoiler		3KW
Hydraulic station power		7.5KW
Power		AC380V,50Hz,3 Phase	customized

Packaging & Shipping

Company Profile
FAQ
Q1: How long is the warranty?
A1: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods .If needed ,we will provide free accessories Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.

Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.

Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram

Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance

Q7: How about your delivery time?
A7: Generally, It will take about 7~15 days to send goods out. The specific delivery time depends on the items and the quantity of your order

---
