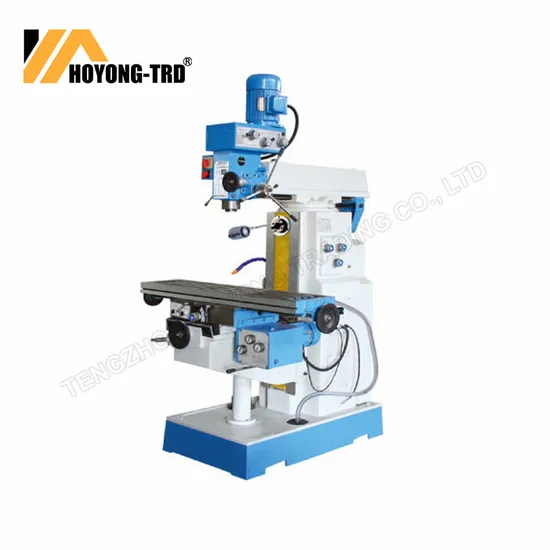

Table Milling Drilling Machine Zx6350d Zx6350A Zx6350c Zx6350z

Product Description

UNIVERSAL DRILLING MILLING MACHINE:
compound sliding table with scale and adjustable stops for coordinate drilling and light milling work
quiet operation with oil-bath lubricated gears for long tool life and durability
the milling machine's high-quality spindle bearing can withstand higher loads for the long term
Gear drive for vertical milling / horizontal milling,
Workbench feed X / Y to automatic, Z to manual,
Milling head can be rotated 45 degrees,
Spark quenching machine.
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Product main technical Specifications:
SPECIFICATIONS:

SPECIFICATIONS	UNITS	ZX6350D
Table size	mm	1120x280
T=slot number/width/pitch	mm	5/14/50
Longitudinal travel	mm	640
Cross travel	mm	240
Vertical travel	mm	430
Vertical milling capacity	mm	32
Face milling capacity	mm	120
Drilling capacity	mm	50
Longitudinal feeds range	mm/min	15.1-266.5(6rank)
Cross feeds range	mm/min	15.1-266.5(6rank)
Vertical milling spindle travel	mm	120
Spindle nose to table surface distance	mm	100-530
Travel of movable arm	mm	360
Vertical milling spindle taper	MT	MT4
Horizontal milling spindle taper	MT	MT4
Vertical milling spindle speeds	r/min	115-1750(8rank)
Horizontal milling spindle speeds	r/min	32-1320(12rank)
Vertical milling motor	KW	1.5/0.85
Main motor	KW	2.0/2.4
Overall dimensions(Lx W x H)	mm	1400x1300x2100
Net weight	KG	1300

---
