US$1,850.00-4,210.00
|
1 Piece
(MOQ)
|
Basic Info.
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Continuous Running Operation
Arbor Configuration
Vertical Shaft
Belonging
Agriculture Machine
Transport Package
Wooden Package
Production Capacity
500sets/Year
Packaging & Delivery
Package Size
205.00cm * 112.00cm * 135.00cm
Package Gross Weight
600.000kg
Product Description
Product Description

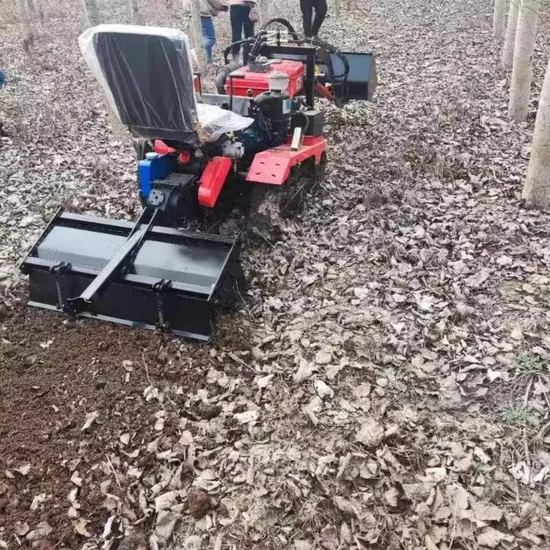

Mini Train Tracked Rotary Tiller With Diesel Engine are provided with rotary ploughing, furrowing, weeding, fertilizing, pesticide application, backfilling, ridge and bulldozing with their attachments quick hitched and thus its utilization up greatly.In addition, they are easy to operate and transport and flexible to work at narrow site. The frame design is reasonable, using thick steel plate, strong and durable, reducing the vibration generated by the engine and prolonging the life of the machine. The engine adopts 25 horsepower diesel engine. 25 horsepower adopts a customized all-gear gearbox. The front gearbox has 3 forward gears, 1 reverse gear, and a working connection box at the rear. It can be used with a large number of agricultural tools such as rotary tillage and ditching. The left and right steering adopts a tie rod mechanism, which is easy to operate, not easy to damage and malfunction.
Detailed Photos
Product Parameters
| Model | XF-250 | XF-400 |
| Power | 25HP | 40HP |
| Travel Gear | 6+2 | 6+2 |
| Rotary Tillage | 2~3 acres/h | 2~3 acres/h |
| Size | 250×90×100cm | 270×100×85cm |
| Weight | 600KGS | 780KGS |
| Transmission Model | YF-250TE | YF-320TE |
| Engine | 17KV Water-cooled electric starting diesel engine (with built-in power generation) | 27KV Water-cooled electric starting diesel engine (with built-in power generation) |
| Function | Turn around in place Hydraulic lifting Manned hill climbing Can work in paddy fields within 15cm |
| Rotary Cultivator | Equipped |
| Additional Parts with Machine | Trenching | Weeding | Backfill | Bulldozing |
| W25cm | W100cm | W100cm | W100cm |
