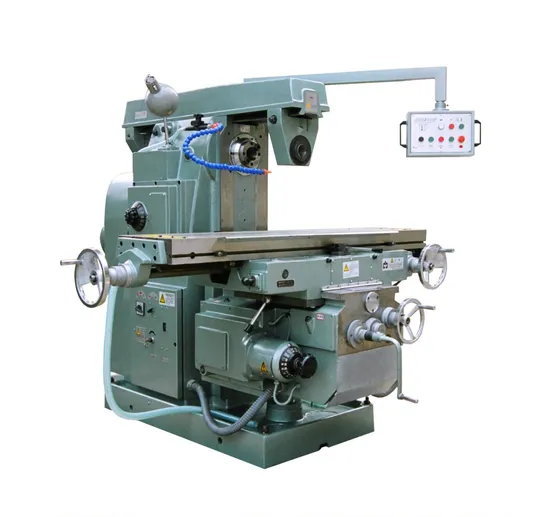

45 Degree Rotary Table Horizontal Milling Machine (HUM42)

Product Description

Features:
Rectangular table guideways with high stability,
hardened and ground table surface,
automatic feeds on X ,Y axis,motorized lifting and falling of table on Z axis.
:Main specification:
Main Specification: (X----longitudinal Y----cross Z----vertical)

Model		HUM32A	HUM32A x 16	HUM42	HUM32	HUM42A
Table size	mm	320 x 1320	320 x 1600	420 x 1800	320 x 1320	425x2000/2500 500x2000/2500
Longitudinal travel X	mm	800/780	1024/1000	1200/1180	700/680	1250/1600
Cross travel Y	mm	300/280	300/280	360/350	225/240	400
Vertical travel Z	mm	410/400	410/400	460/450	410/390	400
Feed speed steps		18	18	18	18	18
Feed speed ranges: Longitudinal X	mm/min	15-750	15-750	22.5-1180	23.5-1180	10~1250
Cross Y	mm/min	15-750	15-750	22.5-1180	23.5-1180	10~1250
Vertical Z	mm/min	5.7-280	5.7-280	8.6-420	8-394	2.5~315
Min. distance between spindle center to table	mm	235-535	235-535	30-48	30-350	70~470
Spindle speed steps		18	18	18	18	20
Spindle speed ranges	kW	30-1500	30-1500	30-1500	30-1500	18~1400
Main motor power	kW	7.5	7.5	11	7.5	11
Overall size	cm	232 x 179 x 172	232 x 202 x 209	243 x 226 x 194	229 x 177 x 179	277/327x253x195
Net weight	kg	3300	3350	5200	2650	5050/5200

:Main features:

Universal knee-type milling machine is suit for milling flat, inclined face angle surface, slots by employing disc cutters, angular cutters, formed cutters and face metal milling cutters.

When mounted with the index, the machine will be able to perform milling operations in gears, cutter, helix groove, cam and tub wheel.

The longitudinal, cross and vertical movements of the table can both be operated by hand and power.

And it can be rapid moved, working table and slide ways adopted quality cast hardened ensure high accuracy.

---
