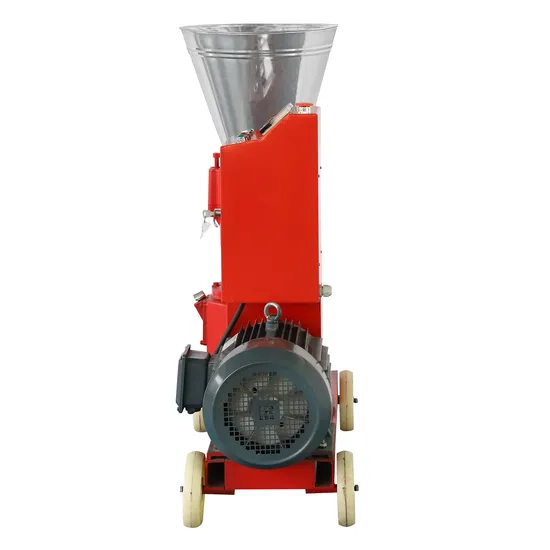

Small Feed Pellet Machine for Africa Market

Product Description

Specifications Power :11kw 380v 3 phase 50hz E-motor
capacity:300-400kg/h
die dia:2.5mm-10mm
can process wood pellet for heating .
it also can produce feed pellet for feed different animals, such as pig, cow, sheep, rabbiet,
duck,chicken ,fish and so on.
Product Description
Raw materials
The raw materials of wood pelletizer can be sawdust, rice husk, cotton stalk, cottonseed skins, weeds and
Crop stalks and other plant wastes, especially low-bonding and unformed material
Process
1. Crushing, make the raw materials to be granulated.
2. Sifter the material
3. Drying, if the raw materials has too much moisture.
4. Pelletizing
5. Cooling and packing

Usage
This machine is situable for making oil cake for the feedstuff. It could be granule/pellet for the fish, chicken,
Animal, etc. (In Africa, it is mostly used for making the cassava pellet for the food. Aslo, it could be used for
Making biomass, sawdust pellet, etc. The ultimate size is Dia 2mm, 4mm, 6mm, 8mm, 10mm, , etc.
Features
1. The wood pelletizer can be powered by both diesel engine and Emotor. We adopt the new design of direct
Connection of motor shaft and the main shaft that overcome the loose defect of belt connecting as long time
Using.
2. The diesel eingine with the clutch and accelerating-decelerating device to change its speed. It is still for the
belt to drive the main shaft.
3. The machine can run smoothly with few noises.
This machine is situable for making oil cake for the feedstuff. It could be granule/pellet for the fish, chicken,
technical data

ODEL NO.	OUTPUT (kg/h)	POWER (HP or KW)	SIZE (cm)	NW/GW (kg)	Qty/20'FCL	Remak
KL120A	90-120	7.5hp	76*43*71	80/100	90	gasoline engine
KL120A	100-130	8hp	87*44*73	120/140	90	diesel engine
KL120B	75-100	2.2kw/220V	75*32*61	80/100	168	CE motor
KL120B	75-100	3kw/380V	75*32*61	80/100	168	CE motor
KL150A	110-210	7.5hp	76*43*71	95/115	84	gasoline engine
KL150A	120-220	8hp	87*46*73	120/140	84	diesel engine
KL150B	150-200	4kw/380V	75*35*65	95/115	126	CE motor
KL200A	250-350	15hp	118*56*95	280/310	40	diesel engine
KL200B	200-300	7.5kw/380V	100*43*95	200/230	60	CE motor
KL200C	200-300	7.5kw/380V	100*46*90	200/230	60	CE motor
KL230A	350-500	22hp	118*56*95	280/310	40	diesel engine
KL230B	350-450	11kw/380V	114*47*97	290/320	45	CE motor
KL230C	350-450	11kw/380V	114*54*93	290/320	45	CE motor
KL260A	300-500	30hp	184*70*116	450/480	16	diesel engine
KL260B	400-600	15kw/380V	120*52*107	330/360	40	CE motor
KL260C	400-600	15kw/380V	122*53*107	330/360	40	CE motor
KL300A	600-850	55hp	200*60*123	520/560	16	diesel engine
KL300B	700-800	22kw/380V	127*52*107	410/450	30	CE motor
KL300C	700-800	22kw/380V	128*58*105	410/450	30	CE motor
KL360A	700-950	55hp	227*62*126	600/620	16	diesel engine
KL360C	700-950	22hp/380V	134*58*106	470/500	30	CE motor
KL400A	800-1100	55hp	227*62*126	750/780	16	diesel engine
KL400C	800-1100	30kw/380V	145*62*115	630/660	25	CE motor

Packing and shipping
To make sure the machine delivery to you at the best condition, we adopt the considerate
way to protect the equipment very well. We consider our products just as our children.

1. How to order?

After you decide to purchase, we will send you proforma invoice with our bank information, bring this PI to the bank, and ask to make T/T for the deposit. For single set, your machine can be ready within 7-10 working days after we getting the deposit, we will send to the port and deliver to you by sea. -In case for more handling charges, you can transfer 100% of the payment, we can arrange the products and shipping under your allowance.

2. Related products?

KL230C

3. Can i order 1 set for sample?

Yes, Sample acceptable, You can test the quality of sample.

4. How do we visit you and your factory?

First of all, welcome you or any appointed agent to visit and inspect our factory. You can fly to Shanghai airport, then come from Shanghai railway station to weifang city. You can fly to Qingdao airport, then we can pich you up there. We can pick up you at Qingdao airport or Weifang railway station. Please kindly let us know your schedule in details, so we can arrange everything for you. 5. Why you choose us? As manufacturer, our products have excellent quality and competitive price. Good after-sale services and 12 months warranty are visible. Strictly testing and checking before shipping. 25 years experience in manufacturing and 10 years exporting experience. Doing OEM for many famous brand. Online service As 7/24 email and phone call service is available, I am ready to answer your any specific questions regarding to our machinery and pellet mill in particular. In addition, we prepare the teaching videos in terms of installation, lubrication, trial running, parts replacements and so forth. Contact information Sales Director: Ruby Tel: +8615264530427 facebook:rubysuan Address: Sanlihezi Village, Wenfeng District, Laizhou City, Shandong Province, China

if you need more information feel free to send Email to me.

---
