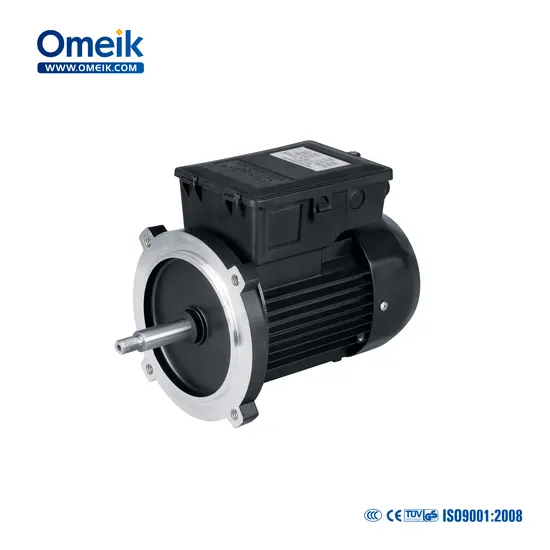

NEMA Standard 56 48 Forma J Forma C High Quality High Torque Low Noise AC Electric Motor

Product Description

Application:
>> Designed for the pool pump, bathtub pump, centrifugal pump
>> Be made of seleceted quality material, latest design in entirety
>> Good performance, low noise, little vibration, safe and reliable coopeation
>> Nice appreance, light weight
>> Be maintained very convenienty, simple constuction.
Operating Conditions:
1. Ambient temperature: -15 degree Celsius≤ θ ≤ 40degree Celsius
2. Altitude: ≤ 1000m
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
8. Cooling method: IC0141
Note: If you have any special requirements, please contact us.

Model	Output		Current	Power	Eff	Speed	Tstart/Tn	Ist/In	Tmax/Tn
	KW	HP	(A)	Factor	(%)	(r/min)
FT63-180	0.18	1/4	1.33	0.93	66	2800	0.5	4	1.8
FT63-250	0.25	1/3	1.82	0.93	67	2800	0.5	4	1.8
FT63-370	0.37	1/2	2.62	0.93	69	2800	0.45	4	1.8
FT63-550	0.55	3/4	3.79	0.93	71	2800	0.45	4	1.8
FT71-550	0.55	3/4	3.79	0.93	71	2800	0.45	4	1.8
FT71-750	0.75	1	5.02	0.93	73	2800	0.4	4	1.8
SD63-180	0.18	1/4	2.62/1.31	0.93	67	3450	0.5	4	1.8
SD63-250	0.25	1/3	3.6/1.8	0.93	68	3450	0.5	4	1.8
SD63-370	0.37	1/2	5.16/2.58	0.93	70	3450	0.45	4	1.8
SD63-550	0.55	3/4	7.46/3.73	0.93	72	3450	0.45	4	1.8
SD71-550	0.55	3/4	7.66/3.83	0.93	72	3450	0.45	4	1.8
SD71-750	0.75	1	9.9/4.95	0.93	74	3450	0.4	4	1.8
SD80-1100	1.1	1.5	14.14/7.07	0.93	76	3450	0.4	4	1.8
SD80-1500	1.5	2	19.04/9.52	0.93	77	3450	0.35	5	1.8

SPARE PARTS:
PACKING WAYS
FAQ Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply

---
