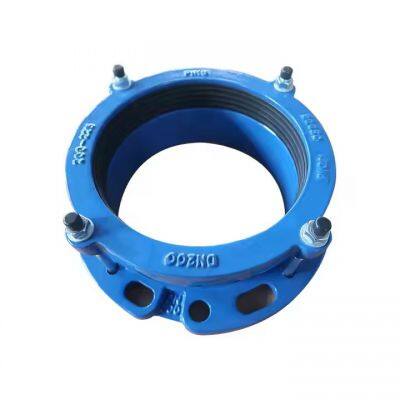

Product Description
Product Description
1. Application :
* used for pipe connection .
* suit for Ductile Iron Pipe, Cast Iron Pipe, Steel, AC, Plastic pipe
* Working pressure: PN10 / PN16
* Suit for Water, Neutral Liquids and Sewage
2. Features :
* wide range of tolerance
* corrosion resistance
* allow angular deflection of +/- 4°
3. DIMENSION SHEET
| S/N | Size | O.D Range |
| mm | mm |
| 1 | DN40 | 48-60 |
| 2 | DN50 | 59-73 |
| 3 | DN65 | 72-85 |
| 4 | DN80 | 88-103 |
| 5 | DN100 | 96-116 |
| 6 | 108-120 |
| 7 | 109-128 |
| 8 | DN125 | 132-146 |
| 9 | 138-153 |
| 10 | DN150 | 158-172 |
| 11 | 159-182 |
| 12 | DN175 | 192-210 |
| 13 | DN200 | 198-225 |
| 14 | 218-235 |
| 15 | DN250 | 242-262 |
| 16 | 250-267 |
| 17 | 250-274 |
| 18 | 272-289 |
| 19 | DN300 | 315-332 |
| 20 | 322-339 |
| 21 | DN350 | 340-360 |
| 22 | 351-378 |
| 23 | 374-391 |
| 24 | DN400 | 390-410 |
| 25 | 398-430 |
| 26 | 417-437 |
| 27 | 425-442 |
| 28 | DN450 | 450-463 |
| 29 | 455-475 |
| 30 | 476-500 |
| 31 | DN500 | 500-508 |
| 32 | 500-533 |
| 33 | 526-546 |
| 34 | DN600 | 600-630 |
| 35 | 608-636 |
| 36 | 630-650 |
| 37 | DN700 | 710-739 |
| 38 | DN800 | 816-842
|
>>
