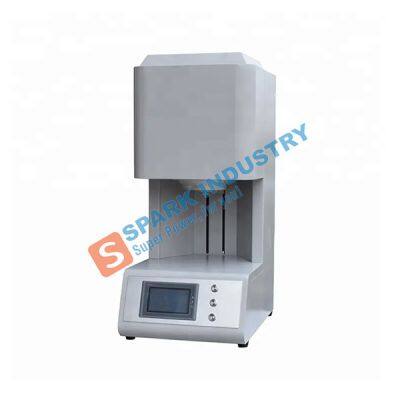

| Model | CY-T1700 |
| Chamber model | lift tray |
| Display | Touch screen LCD |
| Limiting Temperature | 1700℃ |
| Usable Range | ≤1600℃ |
| Heating Rate | Suggestion0~20℃/min |
| Temperature Zone | Single |
| Accuracy | ±1℃ |
| Inside Chamber Size | Φ120×120mm |
| Heating Element | MoSi2 |
| Thermocouple | B Type |
| Max. Power | 1.8KW |
| Working Voltage | AC 208V-240V single phase, 50/60 Hz |
| Temperature Control | PID automatic control via SCR power control |
| Heating curves | 50steps programmable |
| Communication interface | Rs485 |
| Outside Size | 400×530×850(mm) |
| Weight | 85kg |
| Warranty | One year limited warranty (Consumable parts such as heating elements are not covered by |
