Dipped Ca42 SMD Ca45 Low ESR Ca45L Ca55 Tantalum Capacitors

Product Description

ELECSOUND Tantalum Capacitors
CA42 Dipped Tantalum Capacitors &CA45 SMD Tantalum Capacitors
Elecsound is the leading manufacturer of tantalum capacitors, we offer very high quality for dipped type and SMD type tantalum capacitors.

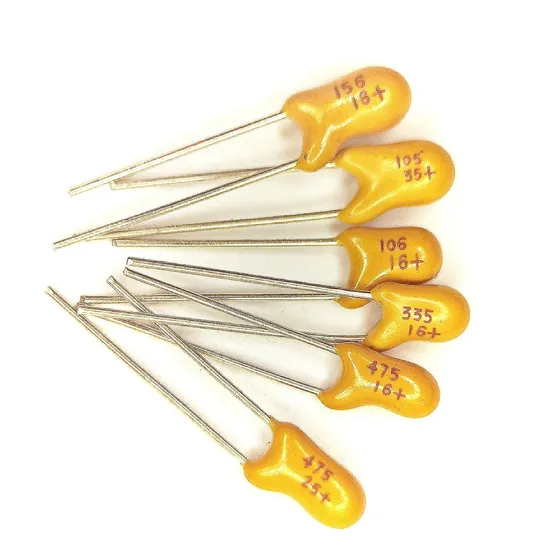

CA42 Dipped Tantalum Capacitors
Small units with high stable performance
Lower current leakage and dissipation factor
Stable frequency, temperature and long life
Suitable for equipments, computer, telephone
Meeting IEC384-15-3 and GB7215-87 standard
Rohs Compliant
Operating temperature: -55 ~125ºC
Capacitance Tolerance:±20% ,±10%,±5%
Capacitance Range: 0.1μF~330μF
DC leakage current(20ºC) I0 ≤0.02CRUR or 1μA
Life test: 1000 hours.

CA42 Exterior And Dimension
Case Size	D(MAX)	H(MAX)	L(±1)	d(±0.05)
A	4	6	14	0.5
B	4.8	7.2	14	0.5
C	5.5	8	14	0.5
D	6	9.4	14	0.5
E	7.2	11.5	14	0.5
F	8.2	12.5	14	0.5

Cap.(uF)	CODE	Rated voltage (V)
		4	6.3	10	16	25(20)	35	50
0.1	104						A	A
0.15	154						A	A
0.22	224						A	A
0.33	334						A	A
0.47	474						A	A
0.68	684						A	A
1	105				A	A	A	B
1.5	155				A	A	A	C
2.2	225			A	A	A	B	C
3.3	335		A	A	A	B	B	D
4.7	475	A	A	A	B	B	C	D
6.8	685	A	A	B	B	C	D	E
10	106	A	B	B	B	C	D	E
15	156	A	B	C	C	D	E	F
22	226	B	C	C	C	D	E	F
33	336	B	C	D	D	E	F
47	476	C	D	D	D	E	F
68	686	D	D	D	E	F
100	107	D	E	E	E	F
150	157	E	E	E	F
220	227	E	E	F	F
330	337	F	F

CA45 Chip Tantalum Capacitors
Surface mount technology
A, B, C, D, E, P six case available
Chip tantalum capacitors have lower ESR
Compatible with automatic pick and place equipment
Suitable for equipment and computer ,mobile phone
Rohs Compliant
Operating temperature: -55 ~125ºC
Capacitance Tolerance:±20% ,±10%%
Capacitance Range: 0.1μF~470μF
DC leakage current(20ºC) I0 ≤0.01CRUR or 0.05μA
Life test: 2000 hours.
Voltage Rating:4V~50V

CA45 Exterior And Dimension
CASE	EIA / IECQ	L	W	H	P	Tw
P	2012	2.0±0.2	1.2±0.2	1.2±0.2	0.5±0.3	1.2±0.1
A	3216	3.2±0.2	1.6±0.2	1.6±0.2	0.8±0.3	1.2±0.1
B	3528	3.5±0.2	2.8±0.2	1.9±0.2	0.8±0.3	2.2±0.1
C	6032	6.0±0.3	3.2±0.3	2.5±0.3	1.3±0.3	2.2±0.1
D	7343	7.3±0.3	4.3±0.3	2.8±0.3	1.3±0.3	2.4±0.1
E	7343	7.3±0.3	4.3±0.3	4.0±0.3	1.3±0.3	2.4±0.1

Cap.(uF)	Rated voltage (V)
	CODE	4(G)	6.3(J)	10(A)	16(C)	20(D)	25(E)	35(V)	50(T)
0.1	104							A	A
0.15	154							A	A
0.22	224							A	A
0.33	334							A	B
0.47	474					P	A	A	A/B/C
0.68	684				P	P/A	A	A	B/C
1	105		P	P	P/A	A	A	A/B	B/C
1.5	155		P/A	P/A	P/A	A	A/B	B/C	C/D
2.2	225	P/A	P/A	P/A	P/A/B	A/B	A/B	B/C	C/D
3.3	335	P/A	P/A	P/A	P/A/B	A/B	A/B/C	C	C/D
4.7	475	A	P/A	P/A/B	A/B	A/B/C	B/C	C/D	D
6.8	685	A	A/B	A/B	A/B/C	A/B/C	B/C	C/D	D
10	106	A	A/B	A/B/C	A/B/C	B/C	B/C/D	C/D/E	D/E
15	156	A	A/B	A/B/C	B/C	B/C/D	C/D	D/E	E
22	226	A	A/B/C	A/B/C	B/C/D	C/D	C/D	D/E
33	336	A/B	A/B/C	B/C/D	C/D	C/D	D/E	E
47	476	A/B	A/B/C/D	B/C/D	C/D	D/E	D/E	E
68	686	B/C	B/C/D	C/D	C/D	D/E	E
100	107	B/C	B/C/D	C/D/E	D/E	E	E
150	157	C	B/C/D	D/E	D/E
220	227	C/D	C/D	D/E	E
330	337	D/E	D/E	E	E
470	477	D/E	D/E	E

Tantlum capacitors ESR
Rated Voltage (V)
	4	6.3	10	16	20	25	35	50
Capacitance with ESR (Standard / Extended) (uF)
0.1					25		24	22
0.15					25		21	17.0/15.0
0.22					25		18	14
0.33					25		15	12
0.47				25	25	14	10/12	8
0.68			30	25	12/25	10	8	7
1		14/25	12/25	11/20	9	7/8	6.5	5.5
1.5	30	12/25	10.0/25	8.0/12.0	5/6.5	5	4.5/5.2	4.0/4.5
2.2	25	9/20	7.0/15	5.5/6.5	3.5/5.3	4.5	3.5	2.5
3.3	9/20	7.0/12	5.5/10	4.5/5.0	2.5/3.0	2.8	2.0/2.5	2
4.7	7.5/10	6.0/7.0	4/5	3.5/4	2.5/2.8	2.4	1.5/2.2	1.4
6.8	6.5/7.0	4/5	3/4	2.5/3.5	1.8/2.0	1.4/2.0	1.3
10	4/6	3/4	20./3.0	2.0/2.8	1.3	1.2/1.8	1
15	3.5/4	3.3/4.0	2.2/2.8	1.8	1.1	1	0.9
22	3.2/3.5	2.5/3.5	1.8/2.4	1.1/1.6	0.9	0.9	0.9
33	2.2/2.8	1.8/2.0	1.1/1.6	0.9/1.5	0.9	0.9	0.9
47	1.8/2.2	1.6/2.0	0.9/1.2	0.9/1.4	0.9/0.9	0.9	0.9
68	1.1/1.6	0.9/1.6	0.9	0.9	0.9	0.9	0.9
100	0.9/1.3	0.9/1.4	0.9	0.9	0.9	0.9	0.9
150	0.9	0.9	0.9	0.9
220	0.9	0.9	0.9	0.9
330	0.9	0.9	0.9
470	0.9	0.9	0.9
Special Low ESR available

Product Overviews
We currently offer a broad range of capacitors, LEDs, Cermet Trimming Potentiometers, PCBs, Semiconductors, Transistors, Zinc Oxide Varistors, Switches and Resistors.
Company Information
Elecsound is an ISO Certificated manufacturer of high quality, high reliability electronic components, formed in January of 1996. Our staff has over 10 years of experience with excellent English. All of our employees have a strong work ethic and a strong commitment to provide the high quality products that consistently meet or exceed our customer's requirements.
Certificates
Packaging & Shipping
FAQ
1: How long is your lead time?
It depends. Normally, it is 2-6 working days if the goods are in stock, or it is 7-40 days if the goods not in stock.

2: What is your terms of payment ?
For small amount orders, 100% better paid by PayPal or T/T in advance. For large amount orders like more than
10000USD, 30% T/T in advance , balance fully paid before shipment.

3. Do you have any MOQ limit for an order?
Yes, we have MOQ. different items have different MOQ. We will mark MOQ when we quote.

4: How to proceed an order?
Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, customer confirms the samples and pay deposit for the official order. Finally, we arrange the production and ship once it's ready.

5: Do you accept online orders?
Sure!! We prefer to fulfil orders under Trade Assurance system, since both parties will be protected.

6: Do you provide samples? is it free or extra?
Yes, normally we could offer samples with free charge but do not pay the shipping freight.

7: How do you guarantee my goods right?
Order will be arranged exactly as requested, we will doubly check the packing and qty before delivering out also we will take you photos if required or necessary.

8: Is it OK to print my logo on the packing?
Of course, customized packing accepted!! But it may bring some cost, it depends on the qty, if small qty then we don't accept.
