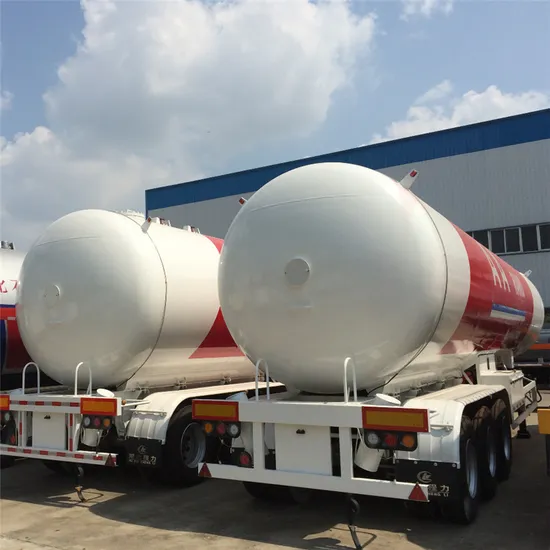

Customized Cheap Price LPG/LNG Utility Gas Road Tanker 3 Axle LPG Gas Tank Tractor Truck Semi Trailer

Product Description

Customized Cheap Price LPG/LNG Utility Gas Road Tanker 3 Axle LPG Gas Tank Tractor Truck Semi Trailer

LPG tank trailer Parameters
Volume (L)	56000
G.V.W (kg)	37020
Curb Weight (kg)	13500
Loading capacity (kg)	23520
Overall Dimension (mm)	12995x2500x3950
Number of axles (mm)	3
Wheel Base (mm)	6880+1310+1310
Approach/Departure Angle (ο)	-/26
Track Rear (mm)	1840/1840/1840
Front/Rear Overhang (mm)	-/1450
Number of springs(F/R)	-7/7/7
Maximum Axle-load (kg)	-/24000
Tire specification	MAXXIS TUBELESS 11.00-20 Aluminum Alloy Rim
Tank material	Q370R
Thickness (mm)	11.5
Tank Color	White
Standard configuration	13 tons of FUWA shaft, valve cover, single-fluid two-valve boxes, JOST legs, 2 inches (50mm) JOST traction pins, two sets of liquid level gauge (Automatic gauge in the front, Manual in the rear), pressure gauge, thermometer, emergency shut-off valve, anti-static grounding tape, fence , tire fenders
Others	Filling medium:LPG(propane);designing pressure 1.77Mpa,designing temperature 50ºC,filling factor:0.42t/m3,corrosion margin:1mm;tank dimension:12311*2466mm
Standard	GB150-1998 Steel Pressure Vessels,Pressure Vessel Safety technical monitoring procedures, liquefied gas tanker safety inspection procedures

LPG semi-trailer (LPG semi trailer) is also known as liquefied gas semi-trailer, liquefied gas tank semi-trailer, liquefied gas tank semi-trailer, liquefied petroleum gas transport semi-trailer, liquefied petroleum gas semi-trailer, LPG tanker semi trailer. It is a special transport semi-trailer for transporting liquefied gases such as propane, propylene, dimethyl ether, liquid ammonia, methylamine and acetaldehyde.
Loading materials
Liquefied gas transport semi-trailers can be divided into: propane transport semi-trailer, propylene transport semi-trailer, dimethyl ether transport semi-trailer, liquid ammonia transport semi-trailer, methylamine transport semi-trailer, acetaldehyde transport semi-trailer, etc.
By axle
The liquefied gas transport semi-trailer can be divided into two-axis liquefied gas transport semi-trailer and three-axis liquefied gas transport semi-trailer.
Load capacity
Liquefied gas transport semi-trailers can be divided into: 24 cubic meters of liquefied gas transport semi-trailer, 44.2 cubic meters of liquefied gas transport semi-trailer, 47 cubic meters of liquefied gas transport semi-trailer, 50 cubic meters of liquefied gas transport semi-trailer, 54.7 cubic meters of liquefied gas Transport semi-trailer, 56 cubic meters of liquefied gas transport semi-trailer, 60 cubic meters of liquefied gas transport semi-trailer.
The liquefied gas transport semi-trailer can be modified according to customer's needs. It is suitable for liquid ammonia, liquid sulfur dioxide, propylene, propane, liquefied petroleum gas, dimethyl ether, n-butane, isobutane, butene, isobutylene, butadiene, ring. Transporting semi-trailers for most gases such as oxyethane.
The liquefied gas transport semi-trailer mainly has the following components:
Liquefied gas tank (made of Q345R steel plate), axle, tire, outrigger, traction pin, double discharge double valve box (pressure gauge, thermometer, tight-cut valve, ball valve), iron wave-proof plate, safety valve, liquid level Meters, fire extinguishers, toolboxes, anti-static tapes, spare tire carriers, plastic tire fenders, etc
Our Factory
Products Display
Cooperative Partner
Qualification Certificate
Packaging & Shipping
Cooperative Brand
FAQ
1.You are factory or trading Company?
Yes, we are oversea sales department of Chengli automobile. And you are always welcomed to visit our factory.
2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.
3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
4. Could you provide certification that we need?
We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on.

5. How long could we receive our goods?
It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.
6. How about the after-sale service?
We can provide you the technical support to guide you repaire your product. And we will also send original spare parts free of charge by air. If you have special need, we can let our engineer to help you in person
