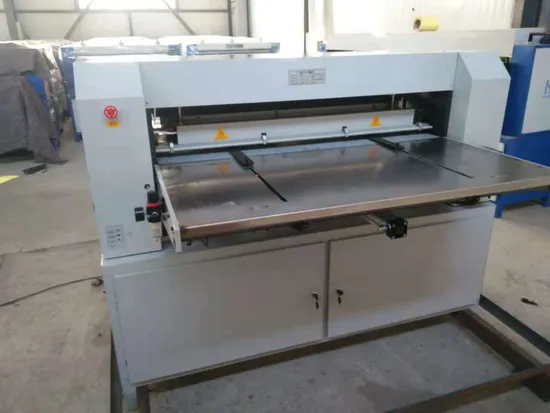

Automatic Bzd-1100 Knife Pleating Machine

Product Description

Knife Pleating machine We produce multi-layered media pleating machines. This type of machine does the pleating automatically. Multi-layered Media Pleating Machine is well designed for industry filtration media, impregnated filter paper, glass fiber (HEPA Filters) synthetic media, and various types of stainless steel, wire mesh as also combination of fabric and wire mesh duly stitched together. It can also pleat paper, card board, copper, aluminum and other metallic foils as may be required.

1-5 Layers pleated, height 5-160mm, width 600-2800mm, according to customer's requirements,.

Maximum width of the product:	1050mm
Adjustable pleat height range	8-55mm
Pleating speed	0-200pleats/min
Power voltage	380V/50HZ
Power:	1.1KW
Warm-up power	3KW
Temperature range:	room temperature to 200ºC
Machine Weight:	800KG
Dimensions	1670*1720*1240mm

---
