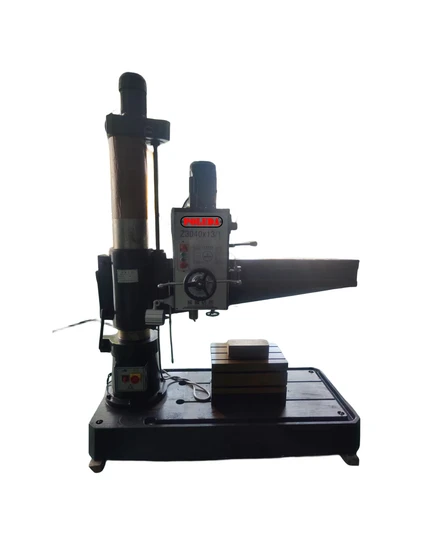

Z3040 Durable Manual Radial Drilling Machine for Long-Lasting Performance

Product Description

Product Description
Rocker Arm Drill Product Introduction
The radial drilling machine is an exceptional piece of hole-processing equipment, purposefully engineered for tasks such as drilling, reaming, tapping, and face trimming. It shines in both single and large-scale productions, adeptly handling porous, sizeable components with ease. A staple in any machining workshop, it offers unparalleled versatility. Here are the defining features of this indispensable tool:
Structural Features: The rocker arm of the radial drilling machine boasts remarkable adaptability, rotating and elevating effortlessly around the column, while the spindle box slides horizontally along the arm. This innovative design ensures exceptional convenience, flexibility, and a broad application scope, especially when managing large and heavy workpieces.
Classification: Radial drilling machines are categorized by the clamping structure into hydraulic and mechanical models. Furthermore, based on drilling size and mechanical principles, these machines are subdivided into various models and specifications, each tailored to specific processing needs.
Technical Parameters: Critical technical parameters of the radial drilling machine include the maximum drilling diameter, the span between the spindle and column, the gap from the spindle end face to the work table, and the spindle's rotation speed. These parameters are pivotal in defining the machine's machining capacity and operational efficiency.
Safety Performance: The radial drilling machine is equipped with robust safety measures, including an overload protection device for the spindle, travel limit switches, and safety nuts on the lifting screws, ensuring an operation that prioritizes safety at every turn.
Application: Radial drilling machines find extensive use in diverse machining departments. Perfect for operations like drilling, reaming, countersinking, tapping, and boring, they are indispensable tools in manufacturing and production realms.
Operation and Maintenance: With operational modes encompassing both manual and numerical control, and transmission options ranging from mechanical to hydraulic, proper operation and maintenance are crucial for preserving machine performance and extending its lifespan.
In summary, the radial drilling machine is a multifunctional, efficient, and secure hole-processing powerhouse. It is perfectly suited for fabricating and producing various metal parts, standing out as an essential tool in modern machining workshops.
Product Parameters
Rocker Arm Drill Product Performance
Radial drilling machines represent a new series of multifaceted tools, celebrated for their impeccable performance, reliability, safety, and ease of maintenance. With high precision and rigidity, the machines are engineered for longevity. They feature hydraulic primary variable speed systems, reducing auxiliary time and offering seamless control over spindle actions and brakes. The hydraulically driven clamping mechanism for the spindle box, rocker arm, and columns ensures steadfast performance. Ensuring the machine's precision remains intact over time, components like the rocker arm guide rail and spindle are quenched. The machine also boasts comprehensive safety and external protection devices, ensuring a secure operational environment.
By clamping structure classification, radial drilling machines are divided into hydraulic and mechanical types. The hydraulic version excels in ease of operation and versatility, particularly suited for the precision processing of porous, large parts in both small-scale and mass production settings, making it a commonplace asset in general machining workshops.

Product Name	Radial drill	Radial drill	Radial drill
Product model	3040*13/16	3032	Z3050*13/16
Maximum diameter of hole	casting40/Steel part35mm	casting32/Steel part27mm	casting50/Steel part45mm
Distance from spindle end face to table	430-1210mm	360-1050mm	360-1300mm
Distance from spindle center to column busbar	300-1100mm	260-1050mm	260-1050mm
Spindle travel	220mm	120mm	220mm
Main shaft hole cone	4Mohs	4Mohs	4Mohs
Spindle speed range	34.78.145..75130.560.260.430.920.380.760.1280rpm		34.78.145..75130.560.260.430.920.380.760.1280rpm
Spindle speed class speed	12	6	12
Spindle feed range	0.10-0.25rpm	0.10-0.25rpm	0.10-0.25rpm
Spindle feed series	3	3	3
Swing arm rotation Angle	Plus or minus 180 degrees	Plus or minus 180 degrees	Plus or minus 180 degrees
motor power	2.2kw	1.5kw	4kw
Machine weight	1400kg	9600kg	2400kg
Overall dimension	1500*705*2020mm	1350*705*1880mm	1950*810*2450mm

Detailed Photos
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac.

---
