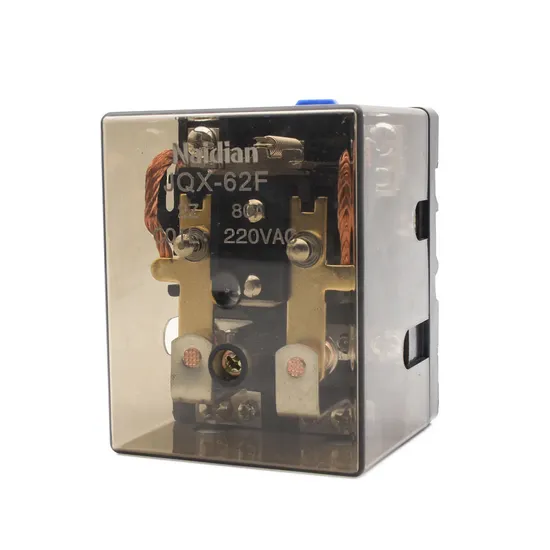

Factory Outlets Automotive Electrical Jqx-62f Dpdt Power Relay

Product Description

Product Description

Contact Ratings
Contact Ratings	2Z, 2H, 2D
Contact Resistance	100mΩ (1A 6VDC)
Contact Material	AgCdO
Contact capacity	80A, 100A, 120A
Specification
Insulation Resistance	1000MΩ 500VDC
Dielectric Strength	BCC 2500V
	BOC 1200V
Operate Time	25ms/25ms
Terminal Type	Terminal mounting
Coil Ratings
Coil Ratings	DC2.0W AC2.5VA

Coil Versions

Nominal Voltage VDC	Pull-in Voltage(VDC)	Release Voltage(VDC)	Coil Resistance at Ω:±10%	Nominal Voltage VAC	Pull-in VoltageVAC	Release Voltage VAC	Coil Resistance at Ω:±10%
6	4.8	0.60	18	6	4.80	1.80	9
12	9.6	1.20	60	12	9.60	3.60	36
24	19.2	2.40	220	24	19.20	7.20	144
48	38.4	4.80	1152	48	38.40	14.40	576
60	48.0	6.0	1440	110	88.00	36.00	3500
110	88.0	11.0	6500	220/240	176.00	72.00	12000/14400

Dimension
Certifications
Company Profile
Established in 1989, Naidian Group Co., Ltd. is located in Liushi where is regarded as low voltage electrical equipment production base of China, specializing in manufacturing and selling industrial electronic products. At the same time, we are a pluralistic modern enterprise integrating scientific research, trade, finance and investment together.
We mainly produce all types of relays, such as time relay, miniature relay, general purpose relay, PCB relay, liquid level relay, solid state relay, high power relay, motor protector, and counter, which currently sell well in domestic market, and are exported to South America, the Mid East, Southeast Asia, Europe, Africa and other regions around the world. We have received praises from customers.
ISO9001 quality management system has been strictly operated in our corporation. In addition, some products have passed the attestation of CCC, CE, and UL. Our company also has introduced advanced equipment for constantly research and development of new products.
Reliable quality and excellent service have contributed to our company's good reputation. We will insist on providing better service for our customers and others who concern about us and creating mutual benefits with you. Production workflow
FAQ
1. who are we?
We are based in Zhejiang, China, start from 1989,sell to Domestic Market(80.00%),Mid East(20.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Electromagnetic miniature relay,Time control relay,Electrical network protection relay
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese

---
