Vessel Capacity m³: 6.7 Material: S31603+Q345R Design pressure MPa: 3.5 Design temperature ºC: 150 Work pressure MPa: 2.5 Work temperature ºC: 120 Medium: Amino compounds, hydrogen gas Working life: 10 years Jacket Capacity m³: 0.9 Material: Q345R Design pressure MPa: 0.8 Design temperature ºC: 150 Work pressure MPa: 0.6 Work temperature ºC: 140 Medium: Heat transfer oil, steam Heat exchange area m2: 14.8

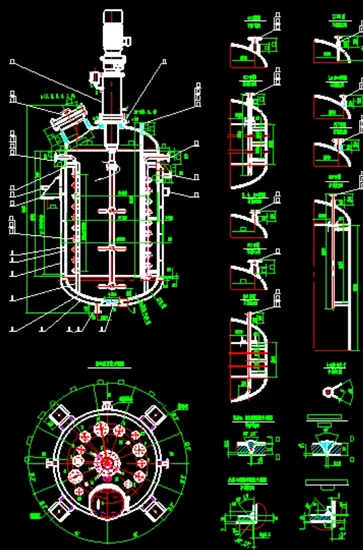

Coil tube Capacity m³: 0.08 Material: S31603 Design pressure MPa: 0.6 Design temperature ºC: 150 Work pressure MPa: 0.5 Work temperature ºC: 130 Medium: water, Ethylene glycol aqueous solution Heat exchange area m2: 8 Total weight Kg: 8053 *For confidential reason, the drawing is in low definition. Please contact us for more information.
| MODEL | FCHA1000-2000L | FCHA3000-5000L | FCHA6000-8000L | FCHA10000-15000L | FCHA15000-25000L |
| CAPACITY | 1000-2000L | 3000-5000L | 6000-8000L | 10000-1 5000L | 15000-25000L |
| WORK PRESSURE MPa | -0.1-10.0 | -0.1-10.0 | -0.1-10.0 | -0.1-10.0 | -0.1 -8.0 |
| WORK TEMPERATURE C° | -15-320 | -15-320 | -15-320 | -15-320 | -15-320 |
| rpm | 0-320 | 0-320 | 0-320 | 0-320 | 0-320 |
| DC motor power W | 3.0-11.0 | 11.0-22.0 | 15-37.0 | 22.0-55.0 | 37.0-75.0 |
| Main materials | 09MnNiDR/16MnDR (low-temperature steel), 15CrMoR (high-temperature steel), stainless steel S30408/S32168/S31603, S39042, titanium material, duplex steel, shackle material, Hastelloy alloy, zirconium material, Monel, and other materials used for explosive composite plates. |
| Heating form | Jacket thermal oil, jacket steam, outer half pipe, inner coil pipe; Electric heating/flue gas heating (435ºC). |
| Mixing form | Disc turbine type, asymmetric turbine type, three blade impeller type, disc inclined blade, four wide blade, propulsion type, impeller type, anchor type, frame type, screw belt type, etc. |
| Shaft sealing form | Magnetic coupling drive with static sealing, zero leakage, long service life, simple installation, safe and environmentally friendly. |
| Remarks | Other special requirements, touch screen intelligent control, program control, and connection to DCS systems shall be designed, manufactured, and configured according to user needs. |
| LUHAO Chemical Machinery Co. Ltd | | | | | | | | | | | | |
| | | | | | | | | | | | |
| Pressure Vessel Design Information Collection Table | | | | | | | | | |
| | | | | | | | | |
| | | Vessel | Jacket (Coil) | | | | | | | | | |
| Work Medium | Name | | | | | | | | | | | |
| Components | | | | | | | | | | | |
| Density (Kg/m³) | | | | | | | | | | | |
| Characteristics | | | | | | | | | | | |
| Viscosity (cP) | | | | | | | | | | | |
| Flow Velocity(m³/h) | | | | | | | | | | | |
| Design pressure (Mpa) | | | | | | | | | | | |
| Work pressure (Mpa) | | | | | | | | | | | |
| Design temperature(ºC) | | | | | | | | | | | |
| Work temperature (ºC) | | | | | | | | | | | |
| Wall temperature (ºC) | | | | | | | | | | | |
| Diamter (mm) | | | | | | | | | | | |
| Length (mm) | | | | | | | | | | | |
| Capacity(m³) | | | | | | | | | | | |
| Effective capacity (m³) | | | | | | | | | | | |
| Corrosion allowance (mm) | | | |
| Corrosion speed (mm/year) | | | |
| Recommended Materials | | | | | | | | | | | |
| Lowest value of average monthly temperature(ºC) | | | | | | | | | | |
| Site location | | | | | | | | | | |
| Installation condition | Indoor Outdoor | | | | | | | | | |
| | | | | | | | | | | | | | | |
| Catalyst Volume(m³) | | | | | | | | | | | | |
| Catalyst Density(Kg/m³) | | | | | | | | | | | | |
| Heat Transfer Area() | | | | | | | | | | | | |
| Coil Specification | | | | | | | | | | | | |
| Basic Wind Pressure(Mpa) | | | | | | | | | | | | |
| Seismic Basic Intensity | | | | | | | | | | | | |
| Ambient Temperature(ºC) | | | | | | | | | | | | |
| Site Type | | | | | | | | | | | | |
| Operating Mode | | | | | | | | | | | | |
| Insulation Materials | Name | | | | | | | | | | | | |
| Thickness | | | | | | | | | | | | |
| Density (Kg/m³) | | | | | | | | | | | | |
| Seal Requirements | | | | | | | | | | | | |
| Liquid Level Gauge | | | | | | | | | | | | |
| Emergency Cut-off | | | | | | | | | | | | |
| Static Electricity Removal | | | | | | | | | | | | |
| Anti Eddy Current Requirement for Liquid Outlet | | | | | | | | | | | | |
| Installation and Mantainance Requirements | | | | | | | | | | | | |
| Expected Useful Life (years) | | | | | | | | | | | | |
| | | | | | | | | | | | | | | |
| Safety accessories | | Vessel | Jacket (Coil) | | | | | | | | | |
| Location | | | | | | | | | | | |
| Type | | | | | | | | | | | |
| Specification | | | | | | | | | | | |
| Quantity | | | | | | | | | | | |
| Set pressure(Mpa) | | | | | | | | | | | |
| Burst disc | | | | | | | | | | | |
| Burst pressure(Mpa) | | | | | | | | | | | |
| Safety discharge(kg/h) | | | | | | | | | | | |
| | | | | | | | | | | | | | | |
| Agitator | Type | | | | | | | | | | | | |
| Impeller Diameter(mm) | | | | | | | | | | | | |
| Speed(r/min) | | | | | | | | | | | | |
| Motor | Model | | | | | | | | | | | | |
| Power(kw) | | | | | | | | | | | | |
| Explosion Proof Grade | | | | | | | | | | | | |
| Speed reducer | | | | | | | | | | | | |
| | | | | | | | | | | | | | | |
| Piping Table | | | | | | |
| No. | Dimension | Pressure | Connection Size Standard | Connection Surface Type | Function | | | | | | |
| | | | | | |
| a | | | | | | | | | | | |
| b | | | | | | | | | | | |
| c | | | | | | | | | | | |
| d | | | | | | | | | | | |
| e | | | | | | | | | | | |
| f | | | | | | | | | | | |
| g | | | | | | | | | | | | | | |
| h | | | | | | | | | | | | | | |
| j | | | | | | | | | | | | | | |
| k | | | | | | | | | | | |
| | | | | | | | | | | | |
| | | | | | | | | | | | |
| | | | | | | | | | | | |
| | | | | | | | | | | | |
| | | | | | | | | | | | | | | |
| Other Requirements if any | | | | | | | |
Kindly fill this form for our quote.
