Vokeda Automatic Feed Cover PUR Glue Binding Machine Vkd20

Product Description

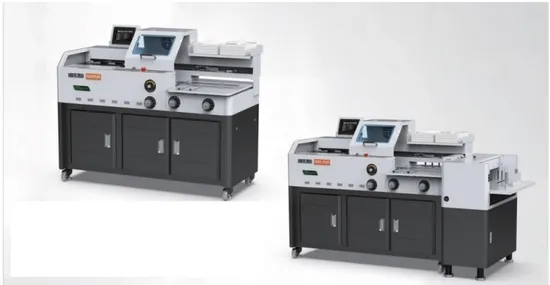

Vokeda automatic feed cover PUR glue binding machine VKD20
PUR Gluing System:The nozzle is designed with easy disassembly for convenient cleaning and maintenance operations.
One-Click Switching Function:Enables effortless switching through one-click operation,facilitating easy cleaning of the adhesive pipeline.
Bottom Glue Adjustment:Allows for adjustment of the bottom glue thickness for accommodating various binding requirements.
Integrated Machine Body Design:Features an integrated machine body design for easy installation and enhanced equipment stability and reliability.
Patented Gluing Technology:Incorporates a unique PUR glue +cleaning agent spraying patented technology to ensure book binding effectiveness and stability.
Intelligent Electronic Control System:Equipped with a 7.0-inch color touch screen and an intelligent circuit control system for user-friendly operation.Includes features such as automatic thickness measurement and intelligent adjustment of milling cutter and gluespraying slider size based on binding thickness,as well as abnormal air pressure detection and alarm functions.
Industrial-Grade Linear Guide:Utilizes industrial-grade linear guides and synchronous belt drive structure for smooth operation and low noise.
Safety Protection:Equipped with an automatic safety protective cover to ensure operator safety,complying with industrial safety standards.
Environmental Smoke Exhaust:Equipped with an automatic smoke exhaust system to remove waste gas generated during the binding process.
Dual Glue tank Design: Incorporates a 2KG pressure glue tank and an independent cleaning agent tank for batch gluing applications.

Model	VKD20 PUR	VKD20L PUR
Binding Length	120-425mm
Binding Thickness	0.2-50mm
Book Block Height	135-297mm
Maximum Cover Size	660*425mm	660*330mm(Automatic ) 660*425mm(Manual)
Cover Thickness	120-300g
Cover feeder capacity		98mm
Feeding mode	Manual	Feeder
Creasing mode		4 indentation lines
Cover crease center positioning function		Auto adjustment
Cover Side Shot Function		√ (pneumatic)
Cover side gauge		CNC adjustment
Mechanical speed(books/h)	300-400	350-450
Heating time	50 minutes
Glue spray pressure	Manual adjustment
Milling cutter	22 small milling cutters
Display	7 inch color touch screen
Machine weig ht	360kg	420kg
Machine dimension	1530*820*1250mm	2110*820*1250mm

FAQ
1.What is VOKEDA TECHNOLOGY machine warranty?----one year.
2.Does your machine with CE certificate?----Yes.
3.What is the production time while placing order?----Arounding 5-10 days
4.What is the delivery time?----Within 5-10 days after got the payment.
5.Can VOKEDA TECHNOLOGY handle shipping for customers?----Yes.(Please provide us your requested destination port ,and we can check the shipping charge and arrange shipping for your order)
6.Does the package strong?----Yes, of course! All of our export package is enough strong with wooden case, all are confirmed with export packing standard.
7.How about after-sales service ?----my engineer can offer you traning for operating the machine .
8.Are you a manufacturer?----Yes, we are a manufacturer with 10-year experience and profession.
9.What is the minimum quantity for order?----Trial order 1 pc is acceptable, we done business step by step with high quality products and excellent services.
10Do you have some machines in stock ?--- yes , we have .
11Do you inspect the finished products?----Yes, each step of production products will be picked out inspection by QC department before shipping.
12.What's the payment term?----T/T or western union

---
