Granite Wire Saw Cutting Machine Multi Diamond Wire Saw Machine

US$9,825.00
1-4 Pieces
US$9,650.00
5+ Pieces

Basic Info.

Model NO.
YGWC-600
Type
Hydraulic Cutting Machine
Usage
Ceramics, Fire Brick, Red Brick, Cement Brick, Concrete Curb, Granite, Marble
Application
Machinery & Hardware, Construction, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
CE
Name
Hydraulic Wire Saw Machine
Cutting Depth
Max 510mm
Rotary Speed
1300rpm
Voltage
220V or 380-460V
Power Source
Electric/Hydraulic
Running Speed
1300rpm
Max Blade Diameter
1200mm
Engine
Engine
Electric Motor
Water Cooled
Transport Package
Wooden Case
Specification
600*650*1050mm
Trademark
YG
Origin
China
HS Code
8464102000
Production Capacity
1000sets/Month

Product Description

Hydraulic Electric Motor Mountain Quarry Driving Rock Wheels Granite Cutting Wire Saw Machine
Product Description

Wall cutting machine is mainly used for building or old building renovation, reinforcement, change the design, you can cut the door, window or elevator hole and other large area wall cutting.
The structure of non-destructive, one-time molding, in addition to the traditional master can avoid the construction of the damage to the structure of the building; drilling round hole way consumption time, material, human, but also can save a lot of rest time and cost.

Electric Wall Cutting Machine
Model
YG-800
YG-1000
YG-1200
Saw blade diameter
Φ800mm
Φ1000mm
Φ1200mm
Cut depth
320mm
400mm
500mm
Motor power
6150W
Cutting efficiency
3-6m/h
Voltage
220v
Best use length
100m
Size
1000*1000*800mm
1200*1200*800mm
1400*1400*900mm
Weight
50kg
78kg
98kg
Frequency
50-60Hz
Semi-automatic add a set of servo motor: 1500 w
Automatic add two sets of gear sets
Remote add two servo motor: 1500 w

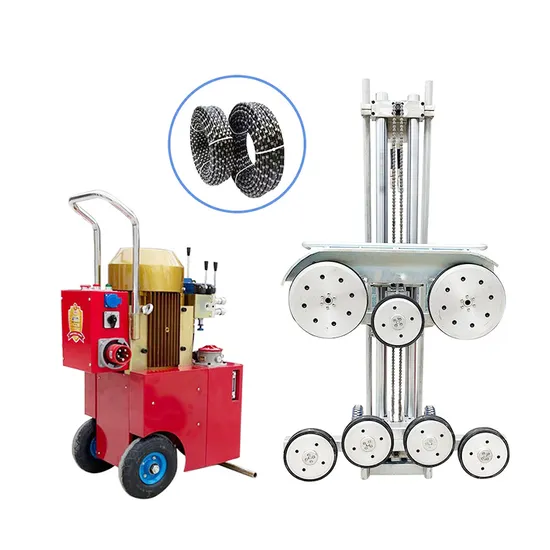

Hydraulic Wall Saw Machine
Name
Hydraulic power station
Max. power
25kw
Motor cooling method
Air cooling
Rated voltage
380v,50hz
Pressure stages
3
Max. operating pressure
200bar/20Mpa
Oil flow rate
30-80L/min
Dimensions
600*650*1050mm
Weight
220kg
Name
Wall saw head
Saw blade diameter
800-1400mm
Cutting depth
620mm
Max.working pressure
180bar/18Mpa
Max.oil flow rate
100L/min
Gearing
Grear
Rotation speed
450/950/1300rpm
Dimensions
400*420*400mm
Weight
38kg
