Product Details
Product Description
Product Description

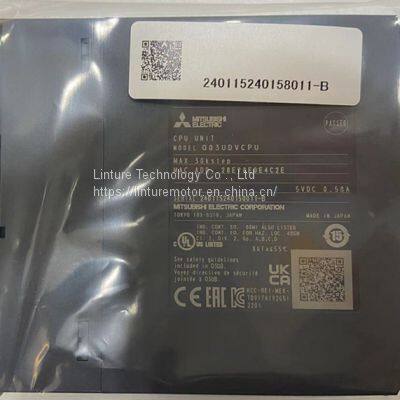

Mitsubishi q series universal high speed CPU module q03udvcpu product
specification
[control mode] stored program repeat operation
[input / output control mode] refresh mode (input / output of direct access
mode can be carried out by specifying direct access mode input / output (DX □,
Dy □))
[program language (sequence control program control language)] relay symbol
language, logic symbol language, melsap3 (SFC), melsap-l, function block,
structured text (st)
[processing speed (sequence control program instruction)] LD x0 1.9ns; MOV D0
D1 3.9ns
[constant scanning (function for keeping scanning time constant)] 0.5 ~ 2000ms
(can be set in 0.1ms) (according to parameter setting)
[program capacity] 30K steps (120K bytes)
[memory capacity]
. program memory (drive 0): 120K bytes
. memory card (SD) (drive 2): the capacity of SD memory card (SD / SDHC) that
can be installed (up to 32g bytes)
. standard RAM (drive 3)
When the extended SRAM cartridge is not used: 192K bytes
When using extended SRAM cartridge: capacity when not using extended SRAM
cartridge + capacity of extended SRAM cartridge (maximum 8m bytes of extended
SRAM cartridge)
. standard ROM (drive 4): 1025.5k bytes
. CPU shared memory: 8K bytes
High speed communication area between multiple CPUs: 32K bytes
[maximum number of stored files]
. program memory: 124
. memory card (SD)
SD: 512 root folders and 65534 subdirectories at most
SDHC: 65535 root folders and 65534 subdirectories at most
. standard ram: 323 when using / not using the extended SRAM card box
. standard ROM: 256
[maximum number of intelligent function module parameters] initial setting
4096, 2048 when refreshing
[write times of program memory] 100000 times at most
[number of writes to standard ROM] up to 100000 times
[number of input and output software components (number of points can be used
in the program)] 8192 points (x / Y0 ~ 1fff)
[I / O points (accessible points of actual I / O module)] 4096 points (x / Y0 ~
FFF)
[specification of built-in Ethernet port of CPU]
. data transmission speed: 100 / 10Mbps
. communication mode: full duplex / half duplex
. transmission method: baseband
. maximum distance between hub and node: 100M
. maximum number of nodes / connections: up to 4 levels for 10Base-T series
connection and up to 2 levels for 100base-tx series connection
. number of connections: 16 socket communication, melsoft connection and MC
protocol in total, 1 for FTP
[latch (hold point) range] l0 ~ 8191 (default value: 8192 points) (the latch
range can be set for B, F, V, t, St, C, D and W) (set through parameters)
[run / pause contact] one point of run / pause contact can be set in x0 ~ 1fff
(through parameter setting)
[allowable instantaneous stop time] 0.58a (CPU module body) / 0.6A (when
installing extended SRAM card box)
[overall dimension h * w * D] 98 * 27.4 * 115mm
[weight] 0.2kg
>>
