Automatic Cross Cut Saw Machine for Woodworking

Product Description

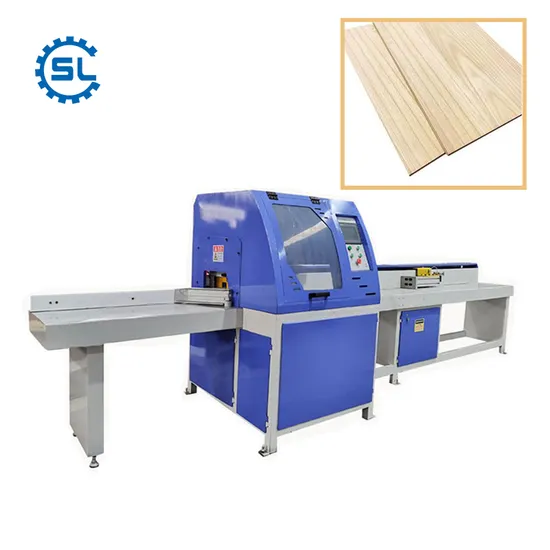

Automatic Cross cut saw machine for woodworking
Woodworking Cross Cut Saw Machine is widely used for cutting wood board, plank, wood pallet blocks into required size.
Product Description
CNC electronic wood cross cut off saw is mainly used for the blanking process of pallet panels, pier blocks, traditional wooden boxes, etc., and can also be used for the production of furniture parts.
The CNC electronic cutting saw is computer-controlled, replacing manual or traditional machines in production, so as to meet the requirements of large-scale production in factories, and solve the problems of low efficiency, large precision errors and difficult management in the production process of factories.
Outstanding Features:
1. Mitsubishi industrial control, stable performance;
2. Free combination of sawing size to reduce production waste;
3. The equipment is simple and flexible, and can be operated by one worker;
4. High yield rate, reducing the amount of cutting loss in the past;
5. Saw cutting block; high precision; safe and efficient
6. Safety: During the whole operation process, the worker's fingers cannot touch the saw blade;

Product Parameters
Wood cross cut-off saw machine details:

Model	JDJ-2000	JDJ-4000	JDJ-6000
Machine size (mm)	4300*1250*1400	6300*1250*1400	8300*1250*1400
Blade diameter	450mm	450mm	450mm
Power	7.5kw	7.5kw	7.5kw
Spindle speed	3500r/min	3500r/min	3500r/min
Weight	850kg	950kg	1100kg
Max. Processing length	2000MM	4000MM	6000MM
Processing width	200-130mm	200-130mm	200-130mm
Processing thickness (height)	100-130mm	100-130mm	100-130mm

Detailed Photos

---
