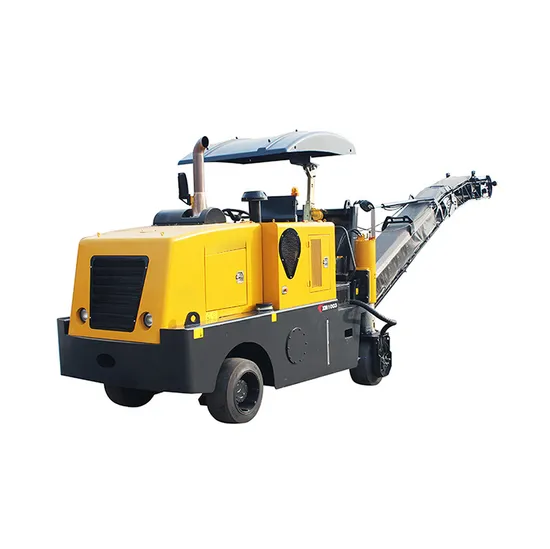

Xm353 Asphalt Cold Milling Machine for Sale

Product Description

Product Feature XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.
Performance and characteristic
• Hydraulic driving milling drum has the obvious characteristics of stable milling and high efficiency.
• Compact three-wheeled machine with front-wheel drive .The advance speed is infinitely variable in both gear which can be suitable for the requirement of different working conditions.
• The front steering driving axie has large steering angle and small turming radius ,can mill along the manhole covers.
• The high-strength and high wear resistance imported cutter head and cutter rest have long service life and low construction cost.
• The imported hydraulic elements have high working reliability.
• Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.
• Hydraulic handheld breakers and rumble strip equipment can be selected.
Main Parameters

MODEL		Unit	XM353
Engine	Engine model		YC4D80-T21
	Rated power /speed	Kw/rpm	56/2200
Performance parameters	Operating speed	m/min	0-25
	Travel speed	Km/h	0-6
	Gradeability	%	20
	Ground clearance	mm	≤80
	Operating weight	Kg	4350
Operating parameters	Max.milling and mixing width	mm	350
	Max.milling and mixing depth	mm	60
	Number of tools		38
	Milling drum diameter	mm	460
	complete dimension(L*W*H)	mm	2820*1225*2050
dimensions	Conveyor(L*W*H)	mm
	Fuel tank	L	80
	Hydraulic oil tank	L	70
	Water tank	L	220
Travel mode			Tire

---
