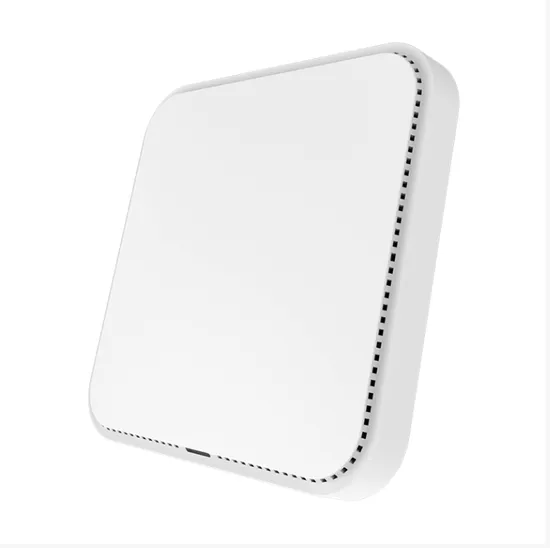

AX835 is a high-performance, high-speed 11ax indoor dual-band ceiling AP that can provide 2.4G and 5.8GHz dual-band wireless services. 2.4G provides up to 574Mbps access rate, and 5G provides up to 2402Mbps access rate.
Main Features: Hardware Specif With better transmission quality and higher transmission rate, the overall concurrent rate can reach up to 3000Mbps. Support hardware watchdog function, automatic recovery of abnormal equipment, and maintenance free. Elegant appearance design, port concealed housing, and beautiful wiring. Supports two power supply modes: 48V PoE and DC 12V.
| Model | AX835 |
| CPU | MT7981B+MT7976CN+7531AE |
| Flash | SPI NOR 16MB |
| DDR3 | 256M |
| 2.4G Frequency | 2.4GHz ~ 2.484GHz |
| 2.4G WIFI protocol | 802.11 b / g / n / ax |
| 5G Frequency | 5.150GHz~5.850GHz |
| 5G WIFI protocol | 802.11 a / n / ac / ax |
| 2.4G Antenna | 2*2.4G: 4.6dBi |
| 5G Antenna | 3*5G: 4dBi |
| Wireless data rate | 2.4G: 574Mbps,5G: 2402Mbps |
| 2.4G Power | 802.11b | 11M | 23±2dBm | 1M | 23±2dBm |
| 802.11g | 54M | 20±2dBm | 6M | 22±2dBm |
| 802.11n HT20 | MCS7 | 19±2dBm | MCS0 | 21±2dBm |
| 802.11n HT40 | MCS7 | 19±2dBm | MCS0 | 21±2dBm |
| 802.11ax HT20 | MCS11 | 17±2dBm | MCS0 | 21±2dBm |
| 802.11ax HT40 | MCS11 | 17±2dBm | MCS0 | 21±2dBm |
| 5G Power | 802.11a | 54M | 20±2dBm | 6M | 23±2dBm |
| 802.11n HT20 | MCS7 | 19±2dBm | MCS0 | 21±2dBm |
| 802.11n HT40 | MCS7 | 19±2dBm | MCS0 | 21±2dBm |
| 802.11ac HT20 | MCS8 | 19±2dBm | MCS0 | 21±2dBm |
| 802.11ac HT40 | MCS9 | 19±2dBm | MCS0 | 21±2dBm |
| 802.11ac HT80 | MCS9 | 18±2dBm | MCS0 | 21±2dBm |
| 802.11ax HT20 | MCS11 | 18±2dBm | MCS0 | 21±2dBm |
| 802.11ax HT40 | MCS11 | 18±2dBm | MCS0 | 21±2dBm |
| 802.11ax HT80 | MCS11 | 17±2dBm | MCS0 | 21±2dBm |
| 802.11ax HT160 | MCS11 | 16±2dBm | MCS0 | 19±2dBm |
| 2.4G Receive Sensitivity | 802.11b | 11M | -87dBm | 1M | -96dBm |
| 802.11g | 54M | -75dBm | 6M | -93dBm |
| 802.11n HT20 | MCS7 | -73dBm | MCS0 | -92dBm |
| 802.11n HT40 | MCS7 | -70dBm | MCS0 | -89dBm |
| 802.11ax HT20 | MCS11 | -64dBm | MCS0 | -92dBm |
| 802.11ax HT40 | MCS11 | -61dBm | MCS0 | -89dBm |
| 5G Receive Sensitivity | 802.11a | 54M | -74dBm | 6M | -92dBm |
| 802.11n HT20 | MCS7 | -73dBm | MCS0 | -90dBm |
| 802.11n HT40 | MCS7 | -70dBm | MCS0 | -87dBm |
| 802.11ac HT20 | MCS8 | -67dBm | MCS0 | -91dBm |
| 802.11ac HT40 | MCS9 | -63dBm | MCS0 | -88dBm |
| 802.11ac HT80 | MCS9 | -60dBm | MCS0 | -84dBm |
| 802.11ax HT20 | MCS11 | -62dBm | MCS0 | -91dBm |
| 802.11ax HT40 | MCS11 | -59dBm | MCS0 | -89dBm |
| 802.11ax HT80 | MCS11 | -56dBm | MCS0 | -86dBm |
| 802.11ax HT160 | MCS11 | -53dBm | MCS0 | -83dBm |
| 2.4G EVM | 802.11b:≤-10 dB;802.11g:≤-25 dB;802.11n:≤-28dB ; 802.11ax: ≤-35 dB |
| 5G EVM | 802.11a:≤-25 dB; 802.11n:≤-28 dB;802.11ac:≤-32 dB ; 802.11ax:≤-35 dB |
| ppm | ±20ppm |
| WAN | 1*10/100/1000M WAN, support 48V POE |
| LAN | 1*10/100/1000M LAN |
| Reset | Reset*1 |
| Indicator | Triple color(sys-red,2.4G-green,5.8G-blue) |
| Power | PoE 802.3af,DC2.0 12V/1.5A, |
| Max Power Consumption | <15W |
| Size | 186mm × 186mm ×37mm |
| Weight | 0.55kg |
| Temperature | Working: -20°C to 55°C;Storage: -40°C to 70°C;Humidity: 5%~95%(Non-Condensing) |
| ESD | Air: +/-8K,Touch: +/-6K |
| Electrical Surge | Common Mode: 2K, Differential Mode: 1K |
| Working Mode | Gateway, AP |
| Wireless Functions | Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4. |
| Support SSID hidden |
| Support seamless roaming |
| Support 5G Prior for a faster Ethernet. |
| Wireless Security: OPEN,WPA/WPA2PSK-TKIPAES,WPA3PSK-AES |
| Support MAC filter |
| Support Wi-Fi time on/off to save energy |
| Support client isolation to improve the wireless stability |
| Support RF power adjustable, adjust the RF power based on environment. |
| Support user quantity limited, Max 64 users to access each band. |
| Networking Function | VLAN settings |
| Cloud access support in gateway mode |
| Device Management | Back-up the configuration |
| Restore the configuration |
| Reset to factory default |
| Reboot the device: including time reboot or reboot immediately |
| Admin management password modify |
| Firmware upgrade |
| System log |
| Support firmware GUI web management, AC controller management, remote management and cloud management |
| Protocols | IPv4 |
