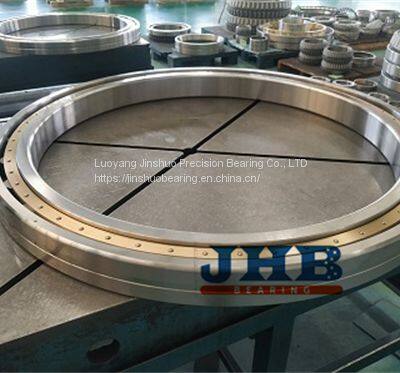

Tubular twister roller bearing Z-546293.ZL
Special Cylindrical Roller Bearings Z-546293.ZL have a lubrication groove and three lubrication holes in the outer ring. The robust solid brass cage is guided on the inner ring.The bearings 546293 are separable and are therefore easier to mount and dismount. As a result, both bearing rings can be given a tight fit. Single row cylindrical roller bearings with cage are available as non-locating, semi-locating and locating bearings.
Factory Bearing items: Z-546293.ZL
Bearing old type:546293
Bearing boundary size:
Standard size,offer drawing to confirm
Bearing outer diameter:
Standard size,offer drawing to confirm
Bearing inner diameter:
Standard size,offer drawing to confirm
Bearing height :
Standard size,offer drawing to confirm
Ring material: steel GCr15SiMn
Roller material：steel GCr15
Internal structure: Single row cylindrical roller bearing
Rolling: Roller
Basic dynamic load rating, Radial Cr:1250KN
Basic static load rating, Radial Cor：2080KN
Limited speed:2800RPM
Clearance:C3 C0 normal use
Package:strong wooden case for export
Special bearings 546293 for tubular stranding machines running at high speeds have increased accuracy to tolerance class P6 or P5.we had manufactured the tubular stranding bearing at least 15 years, So if you have any technology issue, Please contact us.
>>
