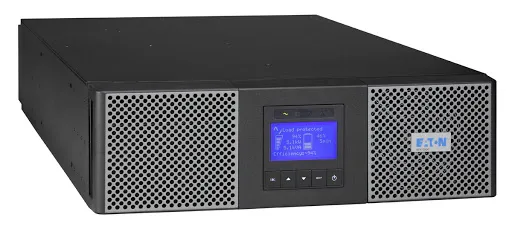

Eaton 9px5ki Double-Conversion (Online) UPS 5000 Va 4500 W

Product Description

The Eaton 9PX is a proven, best-in-class online UPS featuring ABM technology, which extends battery service life up to 50 percent. With double-conversion topology for constant power conditioning and battery packs for extended runtime, the 9PX tower/rackmount UPS is built for scalable deployment and features a graphical LCD interface. Select 9PX UPS models are bundled with the Eaton Gigabit Network card, the first in the industry to comply with both UL and IEC cybersecurity standards. To complete your backup power solution, pair your 9PX with the Eaton Intelligence Platform for seamless management of your connected equipment.
Eaton 9PX UPS
Reliable. Versatile. Powerful. Efficient. With these features and more, the Eaton 9PX UPS integrates seamlessly into just about any IT environment. It's ideal for keeping servers, switches, voice and data networks and storage systems online, supporting your overall goal of business continuity.
A graphical LCD interface provides full UPS status, energy consumption analytics, enhanced configuration capabilities and load segment control. And when paired with Eaton's Intelligent Power Manager (IPM) software, you can monitor and manage your power devices from one dashboard no matter where you are. It also allows you to automate load shedding, power capping and failover to a disaster site since IPM integrates with virtual platforms.
Applications
IT, edge networks, medical/healthcare, universities, K-12, industrial automation, harsh electrical environments.
The Eaton 9PX UPS (1000-3000W) provides advanced protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection and being the first in its class to provide Unity power factor (VA=W).
Eaton 9PX UPS (5000-11000W) - Technical Specifications 9PX5Ki Eaton 9PX 5000i RT3U UPS

General
Topology	On-line double conversion with PFC (Power Factor Correction) system
Configuration	Rack/Tower
Part Number	9PX5Ki
Rating (VA/Watts)	5000/4500
Dimensions (H x W x D, mm)	130 (3U) x 440 x 685
Weight (kg)	48
Warranty	3 years on electronics, 2 years on battery
Electrical Input
Connection	Hardwired - see manual for terminal block layout
Input Voltage Range	176-276V without derating (up to 100-276V with derating)
Nominal Voltage	200/208/220/230/240V
Frequency	50/60 Hz autoselection
Frequency Range	40-70 Hz
Short Circuit Current	90 A
THDI	<5%
Electrical Output
Voltages	200/208/220/230/240V +/- 1%
Voltage THD	< 2%
Output Receptacles	Hardwired - see manual for terminal block layout (8) IEC-320-C13 (2) IEC-320-C19
Overload Capacity	102-110% : 120s, 110-125%: 60s, 125-150%: 10s, >150%: 500ms
Efficiency (Normal Mode)	Up to 94% in Online mode, 98% in Hi-Efficiency mode
Output Frequency	50/60 Hz autoselect, frequency converter as standard
Load Crest Factor	3:1
Battery
Runtime (Minutes) Load (Watts) Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc. Actual runtime may vary from +/- 15% around these typical values Show: Hover over graph for detailed runtime values
Battery Management	ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units.
Extended Battery Capability	EBM (3U)
Communications
User Interface	Multilingual graphical LCD display
Communication Ports	1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off, 1 DB15 for parallel operation
Communication Slot	1 slot for Network-MS card, ModBus-MS or Relay-MS cards.
Environmental & Standards
Audible Noise	<45dB
Operating Temperature	0 to 40°C continuous
Safety markings	IEC/EN 62040-1, UL 1778, CSA 22.2
EMC Markings	IEC/EN 62040 -2 , FCC Class A, IEC/EN 62040-3 (Performance)
Approvals	CE, CB report (TUV), UL

---
