50L 200bar ISO Tped High Pressure Vessel Seamless Steel Oxygen with Cga540 Valve Gas Cylinder

US$55.00-120.00 100 Pieces (MOQ)

Basic Info.

Model NO.
50L
Material
34CrMo4
Pressure
10.0MPa≤p<100.0MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
High Pressure (10.0MPa≤p<100.0MPa)
Condition
New
Model No.
ISO9809
Water Capacity
50L
Outside Diameter
232mm
Working Pressure
200bar
Test Pressure
300bar
Height
1450mm
Weight
51±1kgs
Cap
Common Cap or Tulip Cap or Semi-Circle Cap
Package
Pallet or Bulk
Specficition
ISO/Tped
Wall Thickness
5.2mm
Base Profile
Concave
Neck Ring
with
Color
Customize
Inlet Thread
Customize
Transport Package
Netting/ Pallet
Specification
232*1425
Trademark
YA
Origin
Linyi Shandong
HS Code
7311009000
Production Capacity
20000PCS/ Month

Product Description

1.Product description
Water Capacity 50L
Cylinder Weight 51kg
Outside Diameter 232mm
Service Pressure (Bar) 200bar
Test Pressure(Bar) 300bar
Certification TPED/ISO9809
Head Protection Tulip Cap, Common Cap
After-Sales Service Provided Overseas Third-Party Support Available
Brand Name YA

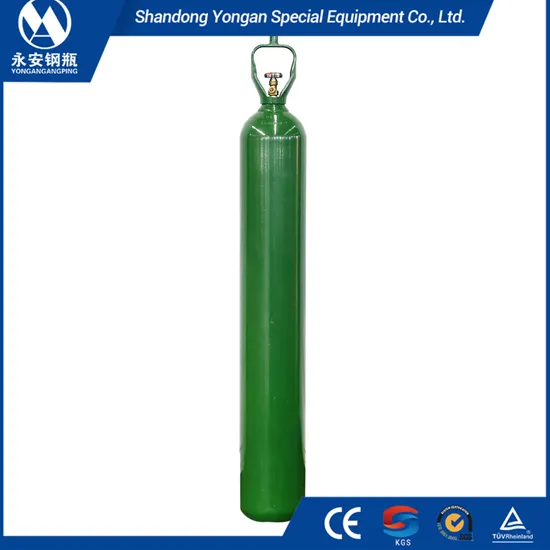

2.Product picture
3.Company Profile
Type Outside
diameter
(mm)		 Water
capacity
(L)		 Height
(mm)		 Weight
(kg)		 Service
pressure
(bar)		 Test
pressure
(bar)		 Design wall
thickness
(mm)		 Material
WGA-232
(TPED)		 232 38 1110 40.2 200 300 5.2 34CrMo4
40 1165 42.1
45 1295 46.3
46 1320 47.1
46.7 1335 47.6
47 1345 48
50 1425 50.6
