OEM/ODM 3 5 7 Corrugated Cardboard Making Line/Corrugated Machine/Carton Box Production Line

Product Description

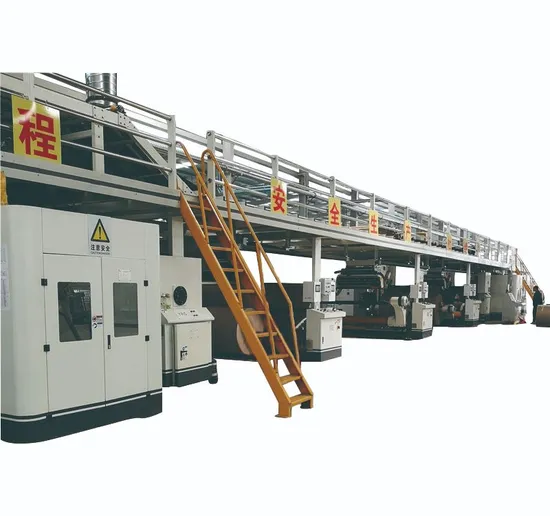

Automatic 3 5 7 Corrugated Cardboard Making Line/corrugated Machine/carton Box Manufacturing Plant

Effective width	2500mm
Design produce speed	300m/min
Three layer economic speed	230-280m/min
Five layer economic speed	190-260m/min
Maximum order change speed	100m/min
Longitudinal separation accuracy	±1mm
Cross-cutting precision	±1mm

Speed the above targets required to achieve:
Effecive width 2500mm, Comply with the following standards and ensure the paper's
equipment condition 175 ºC heating surface temperature.

Top paper index	100g/m² --180g/m² Ring crush index(N.g/m² )≥8 (Water containning8-10%)
Core paper index	80g/m² --160g/m² Ring crush index (N.g/m² )≥5.5 (Water containing 8-10%)
In paper index	90g/m² --160g/m² Ring crush index (Ng/m² )≥6 (Water containing8-10%)
Steam requirement	The maximum pressure 16Kg/cm² Common pressure 10-12kgkg/cm² Use 4000kg/Hr
Electricity demand	AC380V 50HZ 3PH Total power ≈350KW Running Power≈150KW
Compressed air	The maximum pressure 9kg/cm² Common pressure4-8kg/cm² use1 m³/min
Space	≈Lmin120m*Wmin 12m*Hmin5m (The actual drawing to provider to provide audited prevail)

DONGGUANG XINGLONG PACKAGING MACHINERY CO., LTD. is specialized in the production of various kinds of carton equipments of the well-know enterprise.
Factory for over twenty years, we introduced advanced technology at home and abroad, developing and manufacturing products, has been well received by customer.
We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment .products are distributed Russia ,the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country. Product quality and enterprise reputation get the high praise at home and abroad.
Over the years the company take "the quality first" "integrity-based" corporate purpose always meet user're-equipments as our sole purpose, providing the products with excellent quality, professional technology. Our company is willing to cooperate with domestic and foreign insight, strive for innovation, coexist win-win, hand in hand altogether will create packaging future.
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.

---
