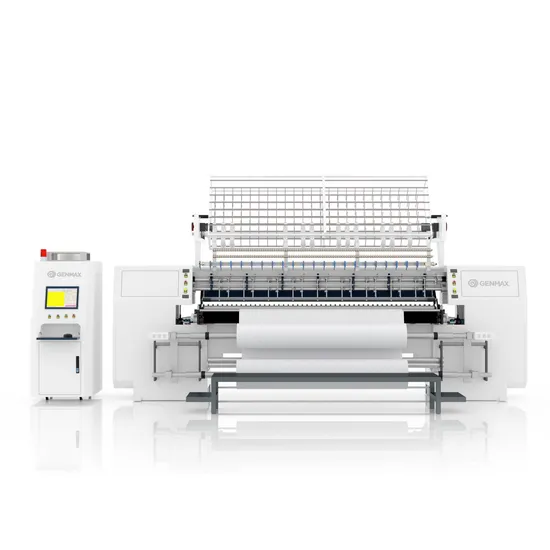

Computer Multi Needle Quilting Sewing Machine for Quilt Maquina PARA Hacer Acolchados

Product Description

If you need more detailed information and other models, please email us. We will promptly reply to you.
Advantages:
1.Panasonic servo drive system.
2.Needle bar and press plate are connected by a cam-free double-swinging device, which is with high precision and durable. This structure can avoid lubrication and dirty material effectively.
3.Both serial patterns and Tack & Jumppatterns (360° and 180°) are available..
4.The machine can automatically stop when the thread breaks.
5.Computerized automatic needle-lifting and speed adjustment
6.New generation of CNC system, advanced machine structure, high precision quilting, dispense with too much parameter adjustment or pattern modification during quilting
7.Precise CAD drawing.
8.Fault detecting system Parameter

Model	YS94	Dimension(L×W×H)	4700 x 1370 x1780mm
Quantity of needle bar	3	Quilting width	2400mm
Space between needle bars	76.2,152.4mm	Space between needles	25.4mm
X-axis movement displacement	304.8mm	Thickness of quilting	≤30mm
Stitch length	2~7mm	Speed of production(m/h)	60-100 m/h
Model of needle	14#-21#	Speed of main shaft(RPM)	300~800rpm
Total power required	4.5KW	Voltage	380V/50HZ 220V/60HZ, 3-Phase
Gross weight	3200KG

---
