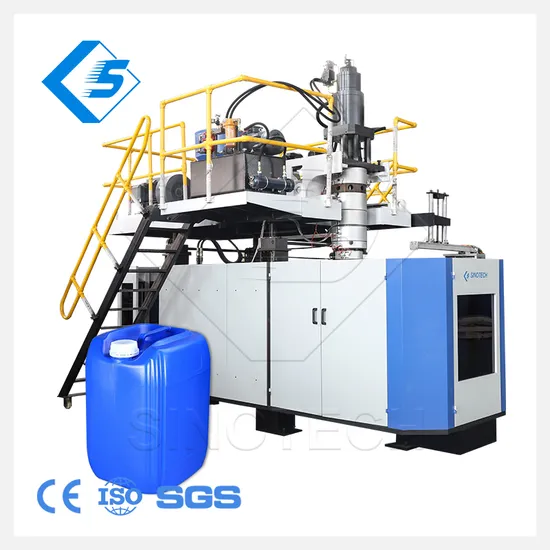

10L 20L 30L Plastic Barrel Blow Mold Machinery/HDPE Chemical Drum Making Machine

Product Description

Product Description
Automatic Extrusion Blow Molding Machine With Great Price
Automatic Extrusion Blow Molding Machine is used toproduce all kinds of the hollow plastic containers for foods, toys, beverages, medicines,chemical products, pesticides&detergents, water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers.
The high level of reliability, excellent efficiency and flexibility to meet varied customer requirements. The machines process a variety of materials, including HDPE, LDPE, PP, PVC, TPU, PETG and other materials. it has faster production rate in an hour. it can cover the complete production scope starting from the smallest ampoule or tube to beverage packaging, cosmetic containers, large mouth containers and multiple layers with view stripe line containers.
Main features
1. Special design for 0-30L PE/PP Jerrycan detergent bottles ...2. Die head design with easy to change the material and color.3. Latest mold changing system, much faster and easier.4. Optimized hydraulic system, proportional pressure control5. Adopts two pull-rod type closing-mold devices by rack and pinion system. The large setting platen is suitable for various sizes of molds6. Simple structure in linear type, easy in installation and maintenance.7. Servo system8. With robot arm take out the finished product9. One to three multi-layers choose10. Hydraulic and electric hybrid power design, makes the machine run more speed and more energy-saving11. Full Servo system control.12. Simple structure in linear type, easy in installation and maintenance.13. With a robot arm take out the finished product.14. Single die-head or multi diehead for choice. Single station or Double station can be chosen.
Product Parameters

Technical Specification
Specifications	Unit	STS-15L	STSII-15L	STS-30L	STSII-30L
Max.container capacity	L	15	15	30	30
Machine diameter(L*W*H)	M	3.6*6*3.5	6.1*4.1*3.6	4.4*6.4*3.6	6.1*6.4*3.6
Total weight	T	13	16	12	18
Die head
Number of die head	SET	1,2,3,4	1,2,3,4	1,2,3,4	1,2,3,4
Number of heating zone	Zone	4	4	3	3
Die head heating power	KW	16	9	12	13
WDS system control	Point	B&R100/300 points	B&R100/300 points	B&R100/300 points	B&R100/300 points
With view stripe for option
Extruder system
Main screw diameter	mm	75	90	90	90
Screw L/D ratio	L/D	25	25	25	25
Melting capacity	Kg/h	120	200	200	200
NO.of heating zone	Zone	3	4	4	4
Heating power	Kw	20	24	24	24
Extruder motor power	KW	30	55	55	55
Clamping Unit
Single station
Max.mold size(W*H)	mm	680*500	680*500
Max.space between Platen	mm	200-660	200-660	450-950	450-950
Platen size	mm	480*560	480*560	680*660	680*660
Clamping Unit	KN	270	270	270	270
Mould thickness	mm	305	305	305	305
Control system
Control system	Brand	B&R(Austria)	B&R(Austria)	B&R(Austria)	B&R(Austria)
Wall thickness control	Brand	B&R100/300Points	B&R100/300Points	B&R100/300Points	B&R100/300Points
Power
Total power	KW	83	90	94	90
Air pressure	Mpa	0.8	0.8	10	10
Air consumption	m³/h	2	2	2.2	2.2
Water pressure	Mpa	4	4	4	4
Cooling water consumption	m³/h	15	15	18	18
Average energy consumption	KW	45	70	70	70

Final Product

Detailed Photos
01 Clamping System
1. Latest toggle type clamping system.
2. Big platen size capable to carriage more bigger size moulds.
3. Strong enough clamping force can make the bottles joint line more perfect and smooth.
4. All casting process ensure the clamping system longer life and more precision.
5. More precision carriage stroke and easy to adjust.6.Safety protection device for operator. Good material used for the die head



02 Electrical System
1. All our electrical components areusing international top brands. Such as Japan Mitsubishi,France Schneider, ABB from Europe, Omron reply, Taiwan delta servo drive controller, Italian Gefran transducer,..
2. Electrical cabinet equipped withcooling fans for temperature adjust.
3. CE standard.

03 Control System
1. Colorful screen display with English.Technical setting date saving system 100 points parison controller, to make sure even thickness of finished product.
2. Optimized switches, easily operation.
3. Latest Wisetech Intelligent control system easy operation.
4. Parison control MOOG 100 points precision to control the wall thickness
5. Production tectonics and parameter saving for 20 moulds.
6. Professional engineer setting pages for problem diagnosis.
7. Short-cut key board & emergency stop or safety production.
8. Aluminum cantilever operation box and easy adjustment.
9. Remote technical support & program

04 Extrusion System
1. High quality hardness bimetallic screw &barrel for PP,PE,HDPE,PVC,PC... high plasticizing and longer life. 2. The extrusion motor adopt famous brand GermanySiemens to ensure the heating result. 3. Pre-heating with intelligent protection for screw and motor4. Heater is adopting high quality ceramic heating technology. 5. Screen filter is optional for small or light weight bottles. 6. Reasonable head runner design for color change quickly. 7. MITSUBISHI Invertor controlling frequency of screwand reducer.
05 Hydraulic System
1. Latest hydraulic oil tank design for smooth running of all hydraulic parts.
2. Hydraulic motor we choose to use servo motor.Servo motor energy saving 50% more than normal motor and Low noise and increase working life of hydraulic units.
3. The machine is equipped with hydraulic valves and hydraulic pumps imported from world-famous companies,thus assuring consistent and reliable working performance.
4. Optimized hydraulic design to adopt pressure, flow and time 3 factors to control action precision and smoothness.
5. Platen moving cylinders with mechanical shuttle valve toreduce impact force at end position.
Seller Recommendation
Our Advantages

Company Profile

Packaging & Shipping
FAQ
Q: Can we visit your factory?Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai PudongInternational Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online byvideo.Q: How can we get the exact price of plastic machine?Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models withquotation.Q: Do you provide any spare parts with machine?Yes, we offer all necessary spare parts before shipment.(contact us for packing list )Q: How about your after-sale service ?We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technicalsupport or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cyclewill vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customersproducts to meet customer' needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train thecustomer's employees.Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we cansource the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

---
