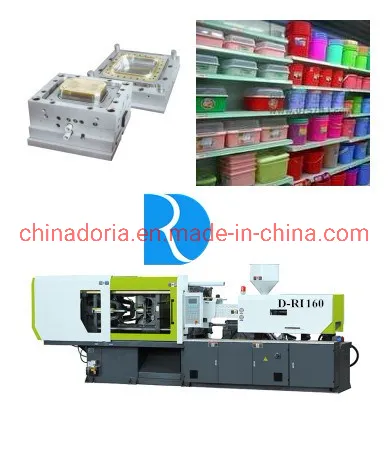

Toggle Plastic PE Products Inject/Injection Mould/Molding Machine 160ton

Product Description

Specification of D-RI160 injection machine
1. Product details:
2. Technical data of D-RI160

SPECIFICATION

D-RI 160

A

B

C

INJECTION UNIT

SCREW DIAMETER

mm

50

55

60

SCREW L/D RATIO

L/D

24.2

22

20.2

SHOT

cm3

455

550

655

VOLUME(THEORETICAL)

600

INJECTION WEIGHT(PS)

g

416

503

187

227

270

INJECTION RATE

g/s

205

169

142

INJECTION PRESSURE

MPa

SCREW SPEED

rpm

180

CLAMPING UNIT

CLAMP FORCE

kN

2500

540

OPEN STROKE

mm

SPACE BETWEEN TIE BARS(W*H)

mm

580x580

550

MAX.MOULD HEIGHT

mm

200

MIN.MOULD HEIGHT

mm

150

EJECTOR STROKE

mm

70

EJECTOR FORCE

kN

OTHER

MAX.PUMP PRESSURE

MPa

16

22

PUMP MOTOR POWER

kW

15

HEATING POWER

kW

MACHINE DIMENSION(L*W*H)

m

5.52x1.60x2.24

380

OILTANK CUBAGE

L

7.5

MACHINE WEIGHT

t

We are the leading trader of New Plastic Injection Moulding Machine 160Ton. This product is produced with the use of high-grade raw material with advanced techno machinery under the guidance of experienced engineers, keeping in mind its application area. It is provided with suction line and return line filtration. These products are highly demanded by our clients in market for their silent features.
Features:
Noise-free machine operation
Long operational life
Low maintenance
3. HYDRAULIC SYSTEM
Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.

4. SERVO SYSTEM
After receiving the pressure and flow instruction from computer controller, the servo driver will compare it with the actual pressure and flow feedback, and rectify the difference by controlling the rotating speed of the servo motor. In this way, the control of injection molding is not only acurate but also fast, and the repeatabillity of the products high as well.
6. Worshop of machine
7. Warehouse of machine:
9. About us:
PET preform manufacturer:
55mm 750g PET preform
55mm 730g PET preform
55mm 700g PET preform
55mm 680g PET preform
55mm 660g PET preform
55mm 580g PET preform
55mm 450g PET preform
55mm 430g PET preform
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.
Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company.
Welcome everyone to visit us, we hope we will have good chance to cooperate!
10. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China

---
