Hot Sale Shoe Cutting Machine Double Beams Increase Production

Product Description

Product Description
Adopting the design concept of replaceable machine head, the tool head is not fixedly welded and integrated, and can be equipped with various cutting tools and drawing tools such as vibrating cutter, circular cutter, pneumatic cutter, electric cutter, bevel cutter, V punch, round punch, etc. Tool heads with different functions can be replaced and added according to actual work needs and business scope expansion. Detailed Photos Vibrating knife cutting machine is a modern cutting tool, widely used in many fields, such as clothing, leather, aerospace,composite materials, insulation, medical and sealing. Its working principle is to drive the tool to perform cutting operationsthrough a high-frequency vibration device. This device consists of a motor and a tool, which generates a high-frequency vibration signal and transmits it to the tool, so that the tool produces rapid reciprocating motion under the action of high-frequency vibration, and cuts into the object with high-speed vibration to achieve cutting operations.

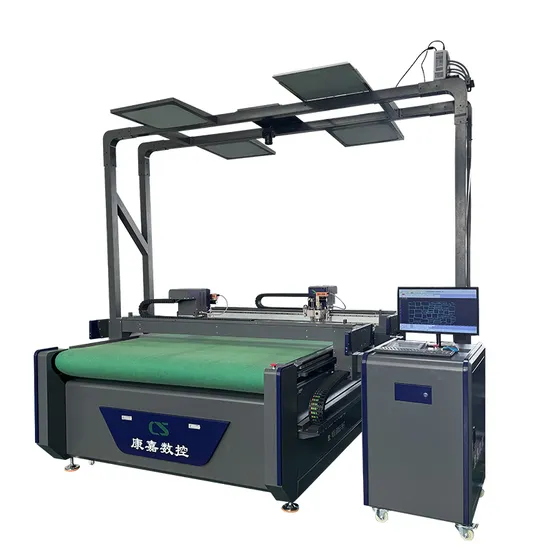

Double beam vibrating knife cutting machine is an efficient cutting equipment, it uses high-precision helical rack transmission and vibrating cutter head, can easily deal with the cutting work of various kinds of high-hardness materials, including cloth,leather, carpet, PVC, corrugated paper, foam, advertising materials, carbon fiber, gasket and so on. The man-machine interface is intuitive and powerful, easy to operate.
Product Parameters

Model	CTS-SL1615	CTS-SL1625	CTSS-SL-1625
Effective cutting area	1500*1600(L*W)	2500*1600(L*W)	2500*1600(L*W)
Operating mode	automatic	automatic	automatic
Voltage	110V/220V/380V±10%, 50HZ 60HZ	110V/220V/380V±10%, 50HZ 60HZ	110V/220V/380V±10%, 50HZ 60HZ
Cutting speed	max 1400mm/s (Elite version)	max 1400mm/s (Elite version)	max 1400mm/s (Elite version)
Cutting thickness	≤50mm	≤50mm	≤50mm
Power	9KW	9KW	13KW
Cutting accuracy	±0.1mm	±0.1mm	±0.1mm
Cutting Materials	Flexible Materials	Flexible Materials	Flexible Materials
Material fixation method	vacuum adsorption	vacuum adsorption	vacuum adsorption
Control system	LED touch screen	LED touch screen	LED touch screen
Transmission interface	USB /inernet port	USB /inernet port	USB /inernet port
Drive motor	Panasonic(Elite version)	Panasonic(Elite version)	Panasonic(Elite version)
Rail	PMI	PMI	PMI
Safety device	emergency stop button, infrared beam, anti-collision	emergency stop button, infrared beam, anti-collision	emergency stop button, infrared beam, anti-collision
Architecture	integrated framework	integrated framework	integrated framework

Application
CNC automatic loading oscillation vibration automatic cutting machine digital leather/cloth/fabric/textile knife cutting machine is widely used for cutting fabrics, leather, cardboard, plastic, paper, rubber, EVA foam, and can cut various types of foams, such as closed-cell foam, rubber foam, foam cotton, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. Widely used in packaging protection, advertising display, terminal insulation, model making, jigsaw puzzles, pattern cutting, etc. Certifications
Company Profile
Quality:
Integrated welding frame body,the preferred parts work stable,long service life. Service:
Lifetime after-sales, 24-hour standby service free update software,version and other regular visits.
Secure:
Infrared induction + mechanical collision avoidance system is safer and more assured.
Feature:
Eight kinds of cutter head interchange, meet a variety of materials cutting,punching.indentation,etc., One machine multi-purpose support multi-cutter head equipment customization. Precision:
Higher cutting accuracy. The error is within 0.lmm.
Environmental protection:
Cold cutting dust-free, smoke-free,natural environmental protection does not destroy the material
Brain power:
Automatic cutting equipment, automatic plate holding software. Save materials and eliminate waste. Packaging & Shipping
FAQ Q: 1. How can I choose a suitable cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut? 2)What's the largest size of original materials? 3)What's the thickness of materials? Q: 2. Can you design a machine for me depending on my requirements? A: Of course, we will discuss details with you and give you our professional suggestion for the machine ensure the machine could match all your requests with best cost performance. Q: 3. What should I do if the machine has any problem in future? A: We supply online technical support and door to door service. Anything confuse you, just contact us. Q: 4. What's the warranty policy? A:Standard warranty is 12 months upon delivery. Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period. Problems caused by wrong operate will also well-solved.
Q:5.What is the Price and payment terms? A:EXW,CIF,FOB we all can accept payment:TT/Paypay/LC/Western Union.etc Q: 6.What's the package? A: Film packaging+wooden case. Fumigation-free plywood case is also available.

---
