Hzs120d 120m3/H Container Type Concrete Mixing Plant for Sale

Product Description

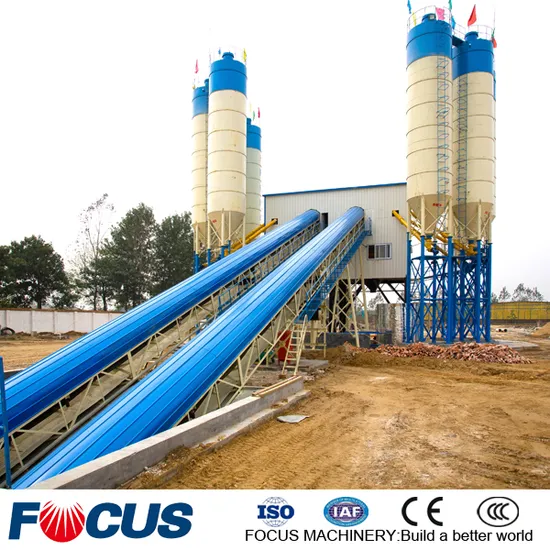

HZS120D container type concrete mixing plant adopts container style, installation is more simple and faster than the normal style. The HZS120D container type concrete mixing plant has enjoyed good reputation in the world market and ready mixed concrete batching plants.
More, Faster, Better, More Economical.
Characteristics of HZS120D container type concrete mixing plant:
1. The interior of the mixing plant needn't to be cleaned manually, not sticking the mixer shaft and the mixing drum cover.
2. The concrete hopper adopts wear-resistant technique, the service life is 5 times of before, and the hopper will not be damaged.
3. Additive scale adopts leakage-proof technique, ensuring the concrete production safety.
4. The water scale adopts pressurized water-discharging technique. It is convenient to add or reduce water, ensuring the control of the concrete slump.
5. Modular design, high industrial degree, fast assembling and debugging.
6. The hopper adopts techniques of not sticking sand and fast unloading. The loading process is fully sealed, which is environmental friendly and pollution-free.
7. The filler bin is installed with centralized controller and negative pressure pulse dust collection device, which facilitates the driver's direct control, realizing the safety of the cement bin and environment protection and dedusting.
8. The operation of the control system is easy, stable, and reliable, having many functions such as supplement, deduction, successive production, intelligent alarm, etc.
No Name Composition Parameters Qty Unit Remark

1	Batcher PLD3200QD-IV	Storage Bin	Each bin volume 20m³	4	pc	Measurement Accuracy:±2% 4aggregate measurement separately
		Measure hopper	max.2000Kg, with sensor	4	pc
2	Main body	Mixer	FJS2000,Volume 2m³, motor power 2x37kw	1	set	Discharge height:3.8m
		Steel structure& modular package		1	set
		Lifting motor	Power 30Kw	1	set
		Skip orbit and hopper		1	set
3	Cement measure system	Cement measure	max. 1200kg, with load cell and butterfly valve	1	set	Measurement Accuracy:±1%
4	Water Supplying System	Water measure	Max. 500kg, with sensor ,butterfly valve Power of discharge pump:5.5Kw	1	set	Measurement Accuracy:±1%
		immersible pump	power :7.5Kw	1	set
		Pipeline and valve		1	set
5	Liquid Additives Supplying System	Additives measure	Max.50kg, with sensor and discharge pump power: 1.1Kw	1	set	Measurement Accuracy:±1% 2 addtives measurement together
		Additives tank	Tank volume 7m³,with pneumatic mixing device, pump power:1.1kw	2	set
		pipeline		2	set
6	Pneumatic System	Air compressor	TA-100	1	set
		Storage tank	C-0.6/0.7	1	pc
		Pipeline		1	set
7	Control room	with HBK120D operating desk, electric cabinet, IPC, printer, air conditioner, monitor		1	set	Total Power :150KW
8	Dust Remove	Dust remove assembly		1	set
9	Powder Conveyor	Screw Conveyor	LSY273-12	4	pc	For cement
10	Powder storage	cement silo in segment	PSC100	4	set	Discharge height:3.32 meters

---
