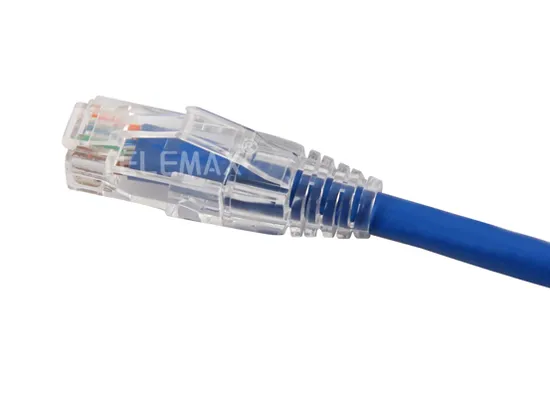

Patch Cord/Cable CAT6A UTP 23AWG Stranded Bc PVC/LSZH Jacket

Product Description

TM02UTP6ABL01-PVC
Cat 6a UTP Patch cord 24AWG Stranded Conductor BC PVC 1/2/3/5......Meters
All cable 100% channel testing, any open, missing wire, short and intermittent are not permitted.
After crimping the distance between the bottom of contact and the top surface of plug are 5.90-6.146mm.
The cable must be tested and passed the channel test with Fluke DSX-8000.
Rohs compliant PVC or PE or LSZH Jacket.
Installation temperature: -30ºC to +50ºC,minimum bending radius: 4D.

RJ45 PLUG 2 PCS RJ45 8P8C Contact, phosphor Bronze 50u″, UL94V-0.
CABLE 1 PCS CAT6A UTP 24AWG(7*0.18MM)*4P Stranded Cable Jacket, OD: 5.9±0.2MM
OVERMODE 48P PVC
Shenzhen TeleMax Technology Co., Limited, founded in 2002, business center and factory located in Shenzhen of China, As one leading ISO leading manufacturer of network cabling and Optical fiber cabling products, its products spread to South East Asia, Europe, Middle East, and America. In past year of 2010, the total sales amount up to 20 millions US dollar.
Presently, there are Oversea Dept, R&D Dept, Customer service Dept, Production Dept, and logistic Dept, logistics Dept setted up in TeleMax, total stuff up to 300 peoples.
TeleMax's products belong to copper to system, fiber system and telecom system, the main products include Cat. 5e/Cat. 6 LAN Cable, patch cord, patch panel, keystone jack, Faceplate; Optical Fiber Cable, Optical Fiber Cord, adapter, connector. Distribution Box, 10 pairs Telecom module, network cabinet.
TeleMax's Capacity is very strong, which can meet all kinds of orders' requirement.
Keystone jack: 600 000 PCS/Month
Patch Panel: 50 000 PCS/Month
Patch Panel: 600 000 PCS/Month
LAN Cable: 8000 Rolls/Month
TeleMax's Certificates
ISO 9001: 2008
UL
CE

---
