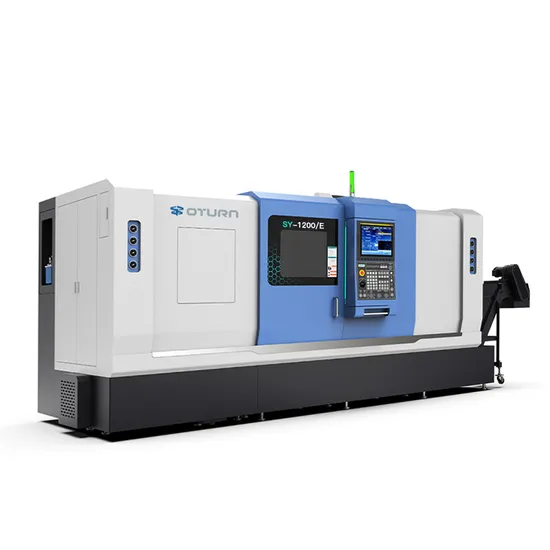

Oturncnc Two Axis High Precision Slant Bed CNC Lathe Esy1200

Product Description

Product Description
The machine adopts an optimized 30-degree stepped flat rail structure design, and has high precision, super rigidity and excellent cutting
stability. High-strength HT300 cast iron one-piece strong structure bed, the application of finite element analysis, the overall mechanical rigidity and stability are excellent, and can maintain long-term reliable precision, improve processing stability and tool life, stress relief treatment improves precision stability, The high-strength roller rail design structure, the transmission system adopts the screw pre-tension design to improve the rigid performance, and the simple and elegant appearance conforms to the trend of the trend.
Main features of this machine tool:
1. The spindle unit is an independent sleeve type. The spindle system runs at 2500rpm, and the nose deflection accuracy is within 0.003MM. The front end of the shaft uses a large-diameter, high-precision double-row roller bearing with a combined angular contact ball bearing structure. The optimal span two-point balance support design can withstand radial and axial loads, and can also provide users with high-speed precision work. It can also perform low-speed and heavy cutting, and is especially suitable for mass production of products with complex shapes, high precision requirements, and high smoothness.
2. High rigidity overall design servo turret. Equipped with a high-precision clutch to ensure its positioning accuracy and repeatable positioning accuracy. It is equipped with a servo motor to drive the cutterhead to rotate for bi-directional or arbitrary tool selection. The hydraulic principle is used to loosen and clamp the clutch, and the proximity switch feedbacks the clutch action signal to quickly and accurately achieve the tool change action.
3. The machine tool is equipped with THK linear guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method to prevent thermal changes. The bit quantity will be reduced to the minimum, greatly improving the processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain intact accuracy when the machine is subjected to impact, and the displacement is smooth and low-noise, which can extend the service life.
4. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. The machine tool adopts centralized quantitative automatic lubrication.
5. Programmable hydraulic tailstock and high rigidity structure of the integral tailstock can eliminate vibration and improve stability. It can be controlled by program or manual buttons, and the sleeve telescopicity is realized by hydraulic cylinder, which is convenient, fast and reliable.
6. It adopts Taiwan rotary chuck cylinder and optional automatic chip removal device, which can greatly reduce the labor intensity of the operator and achieve safe and efficient production. The above functional components can be programmed and controlled, and various components can be designed and installed according to the special requirements of the user. A special fixture. Product Parameters

	Name	Unit	SY1200/E
Travel	Maximum upward rotation of bed surface	mm	Φ700
	Maximum processing diameter	mm	Φ640
	Maximum processing diameter on tool holder	mm	Φ350
	Maximum processing length	mm	1150
Spindle Hydro cylinder Chuck	Spindle nose	type	A2-8
	Spindle maximum speed	rpm	3200
	Cylinder/Chuck	lnch	10″
	Spindle bore diameter	mm	Φ86
	Bar diameter	mm	Φ76
	Spindle motor power	Kw	18.5/22
	Spindle motor torque (1:1.4)	Nm	165-232
X/Z axis feed	X/Z axis limit travel	mm	330/1200
	X/Z axis rail specifications	spes	45 pin roller
	X/Z axis screw specifications	mm	4012
	X/Z axis motor power	kw	2.9
	Positioning accuracy	mm	±0.005
	Repeatability	mm	±0.003
	X/Z axis rapid movement	m/min	24/24
Servo Cutter	Tool station	pcs	12T
	Outside diameter tool holder specifications	mm	25X25
	Inner diameter tool holder specifications	mm	Ф50
	Adjacent tool change time	sec	0.2
	Positioning accuracy	/	±2"
	Repeatability	/	±1"
Tail stock	Hydraulic tailstock	/	Hydraulic tail seat
	Maximum travel of tailstock	mm	970
	Tailstock sleeve tapered hole	type	Mohs 5#
	Tailstock sleeve diameter	mm	Ф100
	Sleeve stroke	mm	100
Mechanical Size	Overall dimensions (length x width x height) approx.	mm	3900*2100*2000
	Weight (approximately)	kg	7200
Other	Cutting fluid tank volume	L	250
	Cooling water pump power	W	750
	Hydraulic unit box volume	L	40
	Hydraulic oil pump motor power	kw	1.5
	Lubricating oil tank volume	L	2
	Automatic lubrication pump motor power	W	50

Products Configurations

Company Profile

Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.

---
