US$8,999.00-14,999.00
|
1 Piece
(MOQ)
|
Basic Info.
Voltage
Three Phase 220V / 380V / 440V
Dehydration Rate
0.6~1.8% / H
Fuel
Paddy Husk, Biomass Pellets, Wood, Diesel, Gas etc
Product Color
Yellow, Green etc.
Transport Package
in Container
Specification
6 ton/batch
Production Capacity
500 Sets Per Month

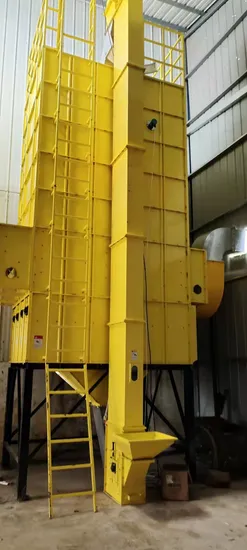

Product Description
Features:
Crushing-proof design, large blade auger (or no auger option).
Wear-resistant stainless steel drying layer, faster thermal conduction.
Large drying area, increased drying efficiency, uniform drying.
Low speed conveying, low grain crushing rate.
Touch screen design, automatic manual mode optional.
Various heat sources option, multiple safety devices.
Online moisture meter, Simple moisture setting. Technical Parameters:
| Model | 5HZV-6 | 5HZV-15 | 5HZV-20 | 5HZV-30 |
| Loading Capacity (Paddy) | 6T | 15T | 20T | 30T |
| Overall Dimension (L*W*H) | 3418*3180*7671mm | 2588*3695*12775mm | 4400*4500*11600mm | 4950*4004*14610mm |
| Weight | 2001 KGS | 3300 KGS | 4155 KGS | 6800 KGS |
| Voltage | Three Phase 380V /440V |
| Total Motor Power | 4.903 kW | 8.103 kW | 10.903 kW | 14.523 kW |
| Drying Rate | 0.6~1.8% / h |
| Load Time | 20~30 min | 40~50 min | 45~55 min | 50~60 min |
| Discharge Time | 25~35 min | 55~65 min | 60~70 min | 65~75 min |
| Safety Device | Overload saftey device, temperature control device, grain overload alarm, chain fault detector, timer switch, control fuse. |
*The parameters are just for reference. Actual data will differ from grain quality, moisture content, ambient temperature and humudity.
*Specification is subject to change without notice Packaging & Shipping
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine corrosion.
Our parts warehouse
We have parts warehoue to make sure deliver parts of machine to custome timely. and provide customer best after sale service.
Our company
"Quality is our culture". Our boss is very strict on production and management. We have a professional designer team and engineers. And our factory have cooperated with University of Science and Technology in agricultural machinery industry. So we make sure you high quality of product and timely delivery.Weclome to inquiry!!!
