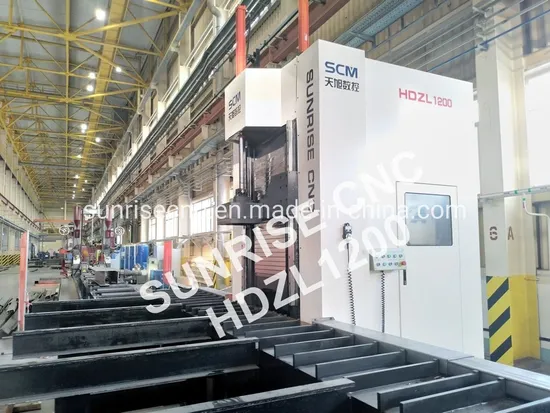

Hdzl Series High Speed Single Spindle Beam Drilling Machine

Product Description

Applicable industry:
Used for the drilling processing of H-shape steel, box beam, angle steel and channel steel of steel structure, bridge, three dimensional garage and petrol platform.
Product feature: CNC systems, LCD screen display, programming Microsoft based on WINDOWS platform, fast and convenient programming, and visual previewing.
2. Main machine, hydraulic pressure, electric components are famous products domestic and abroad. Equipped with automatic feeding system Double linear guides' infeeding, precision much higher and more stable.
Specifications:

Model	HDZL600
The process workpiece size, mm	600x600
Max. Length of work piece, m	14
Max. Drilling thickness, mm	100
Taper hole of spindle	BT40
Motor power of spindle, kw	15
Drilling speed, rpm	30-3000
Feeding mode of spindle, mm/min	0-4000
Max. Feeding stroke, mm	300
Max. Drilling diameter, mm	Carbide drill φ30 High speed steel twist drill φ40
Quantity of axis	3
X axis Servo motor, kw	4.4
X axis Feeding speed, m/min	40
X axis drive mode	Adopt linear guide + rack drive
Y axis Servo motor ,kw	2
Y axis Feeding speed, m/min	8
Yaxis drive mode	Adopt linear guide+ball screw drive
Z axis Servo motor ,kw	2
Z axis Feeding speed, m/min	8
Z axis drive mode	Adopt linear guide+ball screw drive
Type of ATC (Automatic tool changer)	Inline style with 6 tools (Optional)
Quantity of tooling	6
Power supply, V	380V
CNC system	SIEMENS CNC 808D
Weight , t	About 18
Overall size, mm	About 16000 x 4000 x 3600

HDZL600 Main components list:

No.	Name	Manufacturer
The main electrical components:
1	CNC 808D	German Siemens
2	Servo motor	Japan YASKAWA
3	Servo driver
4	Spindle servo motor and driver	BEIJING CTB
5	Push button	German SIEMENS
7	Indicators	German SIEMENS
8	Contactor	German SIEMENS
9	Power supply	China Aerospace Power
10	Photoelectric switch	AUTONICS
11	Proximity Switch	AUTONICS
12	Computer	Lenovo
The main hydraulic components:
1	Hydraulic valves	Italy ATOS
The main mechanical components:
1	Linear slide	Taiwan HIWIN
2	Ball screw	Taiwan HIWIN

HDZL600 Spare parts list for one year work:

No.	Name	Model	Qty.	Remark
1	Proximity Switch		5	AUTONICS
2	Drill handle	BT40	1
3	Drill pole	30	2
4	Blade		4
5	Drill handle	#4	2
6	Drills	40	1 for each
7	Inner hexagon spanner		1 set
8	Adjustable spanner		1
9	Spanner 17-19		1
10	Spanner for quick change drill		1
11	Standby paint		2 pails
12	Operation manual		2 sets

---
