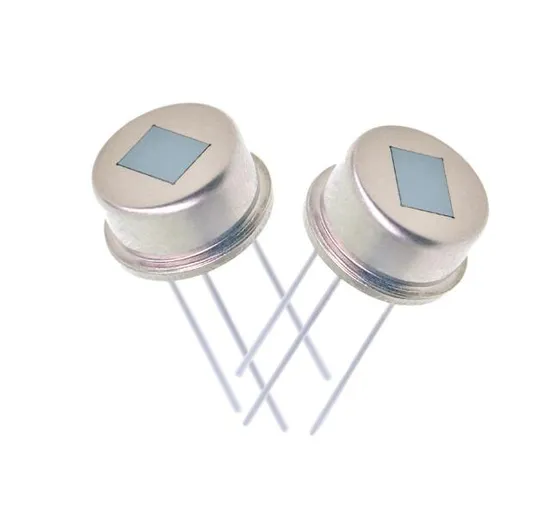

Infrared Human Sensor PIR203s Pyroelectric Passive Infrared Sensor PIR Motion Human Detector

Product Description

Pyroelectric passive infrared sensor
FEATURES:
High sensitivity and superior SNR(signal-to noise ratio);
High stability for temperature change;
High anti-interference ability (For example: vibration, radio frequency interference). APPLICATIONS Security
Luminaire
Family and other fields APPLICATIONS RANGE
This specification describes a pyroelectric passive infraredsensor for passive infrared sensor device. TYPE OF SENSOR
Balanced differential type (Series opposed type.) APPEALANCE AND DIMENSIONS VISUAL INSPECTION There are not remarkable wounds,spots,rust and etc. APPEALANCE AND DIMENSIONS TO-5 Package: see fig 1. ELECTRICAL CHARACTERISTICS( AT 25ºC )

ITEM	CONDITION	RATING
6.1 Signal Output	Black Body temperature: 420K Chopping Frequency: 1HZ, 0.3~ 3.5HZ △f Vd=5V,Rs=47KΩ,the amplifier of Gain 72.5dB Measurement method shown in Fig2.	>3000mVp-p
6.2 Noise Output	Chopping Frequency: 1HZ, 0.3~ 3.5HZ △f Vd=5V,Rs=47KΩ,the amplifier of Gain 72.5dB Measurement method shown in Fig2.	< 70mVp-p
6.3 Balance output	Black Body temperature: 420K Chopping Frequency: 1HZ, 0.3~ 3.5HZ △f Vd=5V,Rs=47KΩ,the amplifier of Gain 72.5dB Measurement method shown in Fig2 and Fig3. VA = A Element sensitivity (Vp-p) VB = B Element sensitivity (Vp-p)	|VA-VB|/(VA+VB) ×100%≤10%
6.4 Operating Voltage	Single power supply RS=47KΩ	2~15V
6.5 Source Voltage	VD=5V,RS=47KΩ	0.4~1.0V
6.6 Circuit Configuration	See Fig.3
6.7 Warm-up Time	After it conneted, it with the measurement amplifier for Fig.3 description that turns on the power supply beforehand, the amplification output is time until stabilizing.	Max: 25 Sec

OPTICAL CHARACTERISTICS

ITEM	RATING
7.1 Field of View	113 degrees from center of Element on Axis X.
	90 degrees from center of Element on Axis Y.
	See Fig 5
7.2Response wavelength band	Filter substrate:Silicon Cut on wavelength:5.5±0.5μm Transmission:7~14μm ≥75%
7.3 Transmission Characteristics of filter	See Fig 6

ENVIRONMENTAL REQUIREMENTS

ITEM	RATING
8.1Operating Tmeperature	-30~70 ºC
8.2Storage Temperatur	-40~80 ººC
8.3 Relative Humidity	The sensor shall operate without increase in Noise Output when exposed to 90 to 95% RH at 30ºC continuously
8.4 Hermetic Seal	No bubbles visible in the 125±5ºC fluorocarbon bath(FC-40) for 20sec
8.5 Reliability Test	Specified in Appendix1( page13~14)

ROHS COMPLIANCE
This product conforms to RoHS regulatin.
INSPECTION Process inspection 100% inspection: Item 6.1 to 6.3 and 6.5 among the electric performances of item 6. OUTGOING INSPECTION Based on statistical sampling inspection method every manufacture lot is inspected for the electrical characteristics item 6.1to 6.3 ,6.5 of the Item 6,and item 5.1 and 5.3 of the appearance of item 5. PACKING The packaging is solid and there isn't breakage PROCESS ATFAILURE In case of finding of failure incoming or process inspection after receipt of products, Both sides negotiate to deal with the failure PRODUCTION GROUND China REVISION Any revision of this specification should be made in writing by discussion.

---
