Point Type IR and UV Flame Detector Test Instrument

Product Description

ABS-H04 (no open flame) Point type IR and UV Flame Detector Test instrument Flame detector test adopts IR transmitting tube and UV phottube with output IR waveband scope of ( 0.5μm ~ 5.5μm ) , UV waveband scope of (185 nm ~255 nm) . Under high-speed SCM as the control chip, the IR with characteristic frequency and duty factor can be emitted and UV waveband in line with flame characteristic frquency can be output. The IR optical filter with detachable structure can be applied to the spectral single-band IR detector. Technical Parameters

Test type	Point type IR detector, Point type UV detector

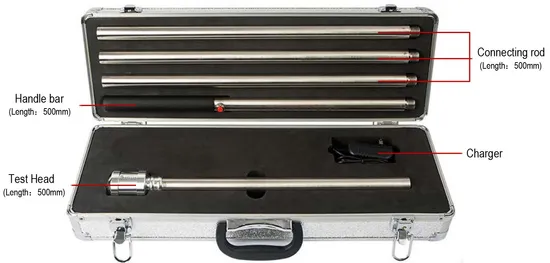

Test Head Materials	Anodized aviation aluminum and stainless steel	Connecting rod material	Stainless steel
Standard Configuration Length	2.5m (can increase the number of connecting rods)	weight	3.95 Kg

Test type	Flame detector	Number of detectors tested	>400 pcs
Output IR waveband scope		0.5 μm~5.5 μm
IR wavelengths are filtered through a optical filter	4.2 μm~4.6 μm Single band,two waveband,three band flame detector
After the optical filter is removed, a single band IR flame detector with broad spectrum is detected
UV band	UV flame detector with wavelength of 185nm ~ 255nm

Remove the shield, align the test head with the flame detector, and press the key. The distance between detector and flame detector shall not be more than 100 mm.

---
