SA2100 Power Quality Analyzer Portable Power Quality Analyzer Supplier
Overview
SA2100 Power Quality Analyzer is a handheld multi-functional device which is designed to measure and analyze single or three-phase power system. This portable class S device can provide safe, convenient and accurate measurements for troubleshooting power networks.
Application
Electrical power, medical, transportation, telecommunication, other industrial areas
Design Features
Basic voltage measurement accuracy of±0.5%
1-50th harmonic display
Support dynamic measurement such as Inrush, Flicker and Transients.
10 kinds of language are available to select
Powerful logger function
Specifiations
Measurement Range
| Resolution
| Accuracy
|
|
Voltage/Current/Frequency
|
Vrms(AC+DC)
| 1~ 1000Vrms
| 0.1Vrms
| ±0.5% of nominal
voltage
|
Vpk
| 1 ~ 1400Vpk
| 0.1Vpk
| ±0.5% of nominal
voltage
|
V(Crest Factor)
| 1.0 ~>2.8
| 0.01
| ±5%
|
Arms (AC)
| 10mV/A
| 0 ~ 100A
| 0.1A
| ±0.5%±0.2A
|
1mV/A
| 1~1000A
| 0.1A
| ±0.5%±0.2A
|
50mV(65mV)/1000A
| 15~5000A
| 1A
| ±1%±2A
|
A(Crest Factor)
| 1~10
| 0.01
| ±5%
|
Frequency
| 42.5 ~ 57.5Hz
(50Hz nominal)
| 0.01Hz
| ±0.01Hz
|
51 ~ 69Hz
(60Hz nominal)
| 0.01Hz
| ±0.01Hz
|
385~414Hz
(400Hz nominal)
| 0.01Hz
| ±0.1Hz
|
Dips & Swells
|
Vrms1/2
| 0 ~ 200% of
nominal voltage
| 0.1Vrms
| ±1%
|
Arms1/2
| 1 ~ 3000A
| 1A
| ±1%±2A
|
Duration
| hour-minute-
second-
microsecond
| 0.5 cycle
| 1 cycle
|
Harmonic(IEC61000-4-7)
|
Harmonic Number
| 1 ~ 50
|
Harmonic Voltage %f
| 0.0 ~ 100.0%
| 0.10%
| ±0.1%±nx0.1%
|
Harmonic Current %f
| 0.0 ~ 100.0%
| 0.10%
| ±0.1%±nx0.1%
|
THD
| 0.0 ~ 100.0%
| 0.10%
| ±2.5%
|
Phase
| -360° ~ 0°
| 1°
| ±nx1.5°
|
Power and Energy
|
Active Power/Apparent Power/Reactive Power
| 1.0 ~ 20.00MW
| 0.1kW
| ±1.5±10 digits
|
KWh
| 0.00kWh ~ 200GWh
| 10Wh
| ±1.5±10 digits
|
Power Factor
| 0 ~ 1
| 0.01
| ±0.03
|
Flicker (IEC61000-4-15)
|
Pst(1min),Pst,Plt,PF5
| 0.00 ~ 20.00
| 0.01
| ±5%
|
Unbalance
|
Voltage
| 0.0 ~ 5.0%
| 0.10%
| ±0.5%
|
Current
| 0.0 ~ 20.0%
| 0.10%
| ±1%
|
Voltage Phase
| -360° ~ 0°
| 1°
| ±2digits
|
Current Phase
| -360° ~ 0°
| 1°
| ±5digits
|
Voltage Transient
|
Vpk
| ±6000Vpk
| 1V
| ±15%
|
Vrms
| 10 ~ 1000Vrms
| 1V
| ±2.5%
|
Min. Test Time
| 50us
|
Inrush Current
|
Arms
| 0~3000Arms
| 0.1
| ±1%±5digits
|
Inrush Duration
| 6s ~ 32min
selectable
| 10ms
| ±20ms
|
Logger
|
Recording
| user-defined parameters for 4 phases at the same time
|
Memory
| Data stored in Micro SD card, 8GB
|
Duration Time
| 2 hrs to 1 year, depends on the recording items
and time interval
|
Interval
| 1s to 1 hrs
|
Monitor
|
Support EN50160 in default or user-defined standard
|

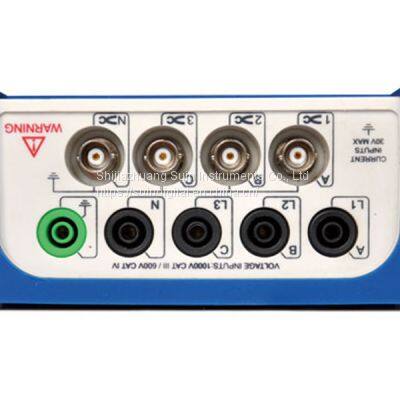

Channel(Voltage/Current)
| 4/4
|
Voltage Range
| 1-1000Vrms, 6000V transient voltage
|
Current Range
| depends on supplied current clamp
|
Micro SD card(bulid-in)
| 8GB
|
Battery
| NI-MH, 3800Ah/>7h
|
interface
| USB Host, LAN
|
Screen
| 5.6' TFT LCD with resolution320*240(SA2100)
|
Language
| 9-Chinese, English, French, German, Korean, Polish, Portuguese , Spanish, Turkish
|
Dimension/Weight
| 262*173*66mm/1.6kg
|
Wire Combinatios
| 1Ø+NEUTRAL,1Ø SPLIT PHASE,1Ø IT NO NEUTRAL,3Ø
WYE, 3Ø DELTA, 3Ø IT, 3Ø HIGH LEG, 3Ø OPEN LEG,
2-ELEMENT, 2 1/2-ELEMENT
|
Electrical Safety
| IEC61010-1 ,Safety Degree: 600V CAT IV 1000V CAT III
|
