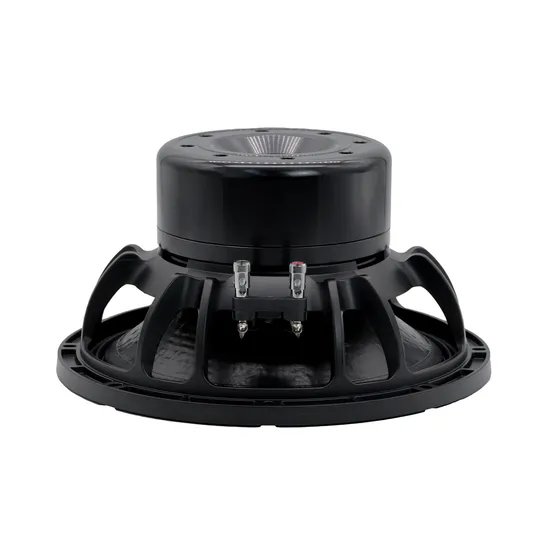

12inch Subwoofer 3400watts Bass Sound Sub Woofer Speaker for Nightclubs Car OEM

Product Description

12inch Subwoofer 3400Watts Bass Sound Sub Woofer Speaker for Nightclubs Car OEM Applicable use Use for pro DJ speakers, pro PA speakers, pro karaoke speakers, live sound speakers, fixed installation speakers, studio monitors and home audio speakers. Product Paramenters

SPECIFICATIONS
TYPE	ND SUBWOOFER
Nominal Diameter	320/12	mm/in
Rated impedance	8	ohm
AES Power Handing	1700	Watts
Peak Power Handing	3400	Watts
Sensitivity	91	dB
Frequency Range	36-1200	Hz
Voice Coil Diameter	116/4.5	mm/in
Winding Material	Copper
Former Material	Glass Fibre
Winding Depth	35/1.38	mm/inch
Megnetic Gap Depth	14/0.55	mm/inch
Megnetic Material	Neodymium Inside Slug

THIELE & SMALL PARAMETERS
Resonance frequency	Fs	36	Hz
Dc resistance	Re	5.3	ohm
Mechanical factor	Qms	3.91
Electrical factor	Qes	0.27
Total factor	Qts	0.25
BL factor	Bl	28.2	T.M
Effective Moving mass	Mms	183	g
Effective Cas air load	Vas	42	liters
Effective piston area	Sd	539	cm2
Inductance	L1kHz	2	mh
Max linear excursion	Xmax	±14	mm
	EBP	133	Hz

MOUNTING AND SHIPPING
Overall Diameter	315/12.4	mm/in
Bolt Circle Diameter	298/11.8	mm/in
Mount Baffle Cut-out	283/11.1	mm/in
Speaker Depth	164/6.45	mm/in
Flange And Gasket Thickness	15/0.59	mm/in
N.W.(1pc)	10.0	kg
G.W. (1 pcs)	12.8	kg
Shipping Size (1pcs)	370x370x280 mm	14.5x14.5x11.0 in

Details Images
Welcome to CONTACT US
Company Introduction

Why choose us Have a product development and design team
Our R&D personnel have 20 years of design and development experience
Development assistance software: FINEMOTER, LMS, CLIO, COMSOL
TJ Audio Speakers is favored and recognized by customers for its high-quality products and beautiful prices. We look forward to receiving your inquiries! Customer Case
FAQ
Q1: How can I get sample?
A: If you need a sample test, please contact us. We will make it according to your requirements. But you may need to pay the sample fee and its shipping fee. Q2: How much is the shipping cost for samples?
A: Different sample have different weights and packaging sizes. Please contact us for details.
Q3: Can I print my logo on the product and packaging?
A: Of course you can. Just need you to send us your logo design and authorization documents, we will make it on the product and packaging according to your request for your confirmation.
Q4: Can you produce according to customer's design?
A: Yes. We mainly do OEM/ODM services.
Q5: How are your products packaged?
A: Generally, we pack in white boxes and brown cartons.
Q6: How to strictly control the quality of products?
A: We have strict quality control on products from raw materials to production process, and all products are tested before leaving the factory. Packing&Shipping
Packing: 1.Neutral Packing 2.Strong Carton 3.1 Piece Per Carton
Shipping: 1)Ocean Transport 2)Air Transport 3)Rail Transport 4)Road Transport 5)International Express

---
