3 Axis CNC Stainless Steel Knife Grinder Making Machine

Product Description

Sun Glory Industry --- A-Z Complete Turn-key Project Provided
Parameters
---------------

Item	GH-3Z350	GH-3Z450	GH-3Z530
Main motor power	15KW	18.5KW	18.5KW
Grinding wheel linear speed	30m/s (white corundum grinding wheel)
CNC system	3-axis Huazhong
Main shaft box max. travel	150mm
Grindable length	380mm	380mm	450mm
A-axis Swift angle	+40° -30°
Grinding wheel specification	Barrel wheel φ355*φ275*125mm	Barrel wheel φ450*φ370*125mm	Barrel wheel φ535*φ455*125mm
Dimension	2100*1800*1800mm
Weight	3500kg

Advantages

1. Enable to grind bevel and plane angle of blade with once clamping.


2. Programs can generated by system with complete and valid DXF graph file upload or input manually through the panel.
3. Enable to realize the linear and circular interpolation grinding by controlling the feed amount and feed velocity of X, Z and A-axis.
4. Multiple operation modes included, Jog, Increment, Electronic hand-wheel, Automatic grinding, Automatic compensation for grinding wheel and more functions.


With correct parameter setting to the system, precision error caused by the gap of ball screw can be reduced or eliminated, quality stability and uniformity of mass production can be ensure.
The control part of the machine adopts the CNC control system, programs are manually written with CNC panel. It is simple and quick to realize the linear and circular interpolation grinding by controlling the feed speed and feed amount of X-axis, Z-axis and the A-axis. The CNC control system has various intelligent operation modes, such as Jog, Increment, Electronic hand-wheel and Automatic grinding, as well as automatic compensation function of the grinding wheel and etc,. It can also finish grinding at the same time of the bevel and plane surface clamping at one time. Via the parameter setting of the CNC system, the precision error caused by the gap of ball screw can be eliminated, and the stability and uniformity of the mass production of the product can be ensure. The basic components of the machine are designed reasonably, with strict material selection, well-equipped auxiliary units, and the manufacturing process is in place. It has high static rigidity and dynamic rigidity, which ensures the quality and precision of the whole machine.
Single-side surface abrasion, bevel surface re-polish, edge grinding, blade back-edge grinding of Ceramic knife, Tailor' scissor, Steel-head knife, Kitchen knife, Bone knife, Dagger and etc. similar blades.

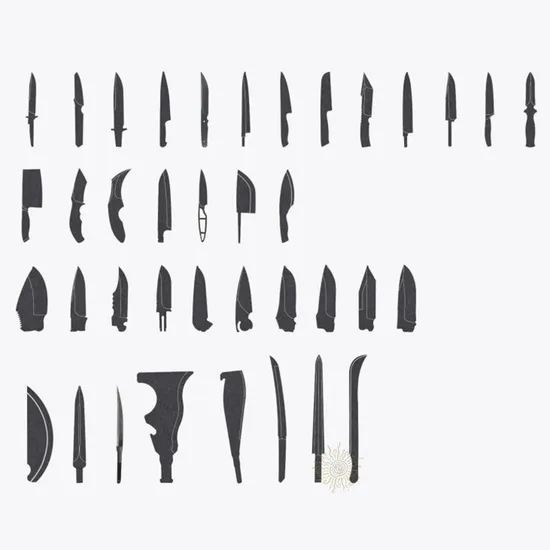

End products
-----------------
Services
-----------
Pre-sale Service
1. Popular design, new trend information sharing.
2. Return of investment analysis.
3. A-Z solution flow chat design.
4. Production process design and feasibility study.
5. Machines line arrangement.

In-sale Service
1. Machines and molds quality control during manufacturing and after finish.
2. Independent verification for each process.

After-sale Service
1. Plant layout proof & production line positioning.
2. Production line installation & debugging.
3. Training after shipment in buyer's factory.
4. Annual visit on site.

Upgraded Service
1. Market trend & latest fashion broad casting.
2. Continuous & systematic training for management, maintenance team & operators.
3. Back up for the regular production.
4. Support in new R&D realization.

---
