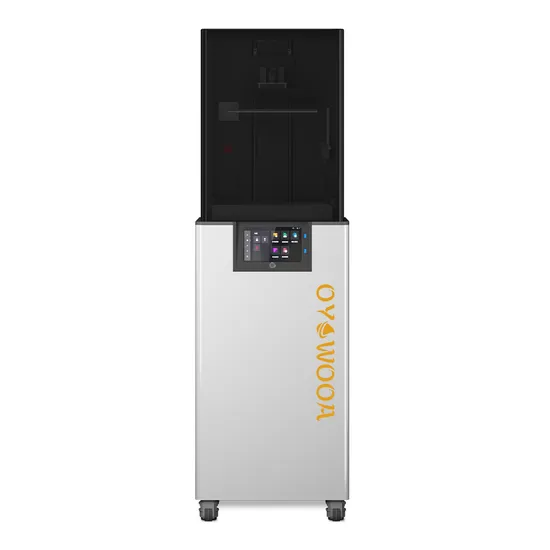

Oyowooa K1 New Jewelry Casting LCD 3D Printing Machine Jewelry Dental Resin Printer Industrial 3D Printer for High Flexural Strength Transparent Surgical Dental

Product Description

Product DescriptionProduct Examples
Product Parameters

OY-K1	Product Name	Industrial LCD 3D Printer Machine
	Brand/Model No.	OY-K1 /K1 Pro
	Z-axis Effective Travel	390mm
	Z-axis Accuracy	0.02mm
	LCD Screen (K1-7K)	13.6 inch 7K (6480 x 3600dpi)
	Printing Size (K1-7K)	298 x 165 x 390mm
	LCD Screen (K1-8K )	16inch 8K LCD Screen
	Printing Size (K1-8K)	353 x 192 x 390mm
	LCD Screen (K1-16K)	13.5 inch 16K (15120 x 6230dpi)
	Printing Size (K1-16K)	302 x 162 x 380mm
	Print Speed	10~30mm/hr. or 1.57in./hr. (Max)
	Layer Thickness	0.1/0.05/0.025mm
	Support Software	ChiTuBox, Tango
	File Format	STL
	Data Input	USB
	Operating Environment	20-30°C (advise 20-25°C)
	Working Humidity	50%-70%
	Rated Power & Voltage	1200W (220V 50HZ)
	Printer Dimension	530 x 438 x 1738 mm/ 68 x 21 x 17inch
	Printer Weight	100kg / 220lbs
	Technology	Light curing (LCD) surface forming
	Clamshell Design	Effectively blocks UV radiation
	Release Film	Replaceable ACF Release Film
3D Printing Photopolymer Resin	Rigid 4000 Resin	Standand Rigid Resin
	280ºC High Temp Resin	ABS-like Resin
	Tough 2000 Resin	Water Washable Resin
	Tough 1500 Resin	Ceramic-like 8K HD Resin
	Dental Model Ortho Resin	Ultra-Clear Resin
	Dental Model Repaired Resin	Rubber-like Resin
	Castable Wax Resin	Silicone-like Resin
Replacement Modules	Buid Platform	13.6inch 7K LCD Screen
	Resin Tank	13.5inch 16K LCD Screen
	ACF Release Film	16inch 8K LCD Screen
Core Components	Automotive Grade LED Beads -Imported LED light source, advanced COB technology, over 92% light uniformity
	Z-axis 4 sliders Dual-track TBI ground ball screw design makes more stable printing.
	Servo motor - Improves position accuracy and anti-interference ability .
	ACF release film - has strong adhesion, but the model is easy to peer off.
	Big Resin Vat, 5KG resin to meet the large dimension printing, The tank can be heated automatically.
	Fast stable heating system, Adjustable Real-time dynamic constant temperature keep it not over 40°C.
	Upgraded build platform - Non leveling, easy to demould.
	5 inch touch-control, Multi-language interface, Show real-time printing progress.
	Modular Settings with replaceable modules, simple maintenance, does not affect production efficiency.
After-Sale Service	Provide the printing parameters from our original factory resin.
	Provide matched technical support and parameter pack .
	Can print upon customers' real model .
	Provide replacement repair service for damaged parts.

Company ProfileDongguan Tianxingjian Electronic Technology Co., Ltd. was founded in 2003, headquartered in the "world factory" known as Dongguan City, near to Shenzhen and Guangzhou City, convenient transportation.
Our company focuses on the development and production of 3D printers, 3D printing resins, 3D Printing Service, UV curing resins, epoxy resins and other products, we have more than ten years of professional experience, concentrate on providing a total bonding solutions for various industries.
Our products are widely used in various industrial manufacturing fields: intelligent security equipment, display, artificial intelligence, digital products and other electronic information industry, Handicrafts, Toys, Furniture lighting, UV transfer printing, 3D printing and other industries.
We have advanced production and experimental equipment, precision inspection and analysis instruments, professional R&D engineer team and technical workers, strict quality management system to ensure the accuracy and stable quality of products, and strive to become the benchmark of the 3D printer industry.
Manufacturing Technique
Certifications
Exhibition
Packaging & Shipping

---
