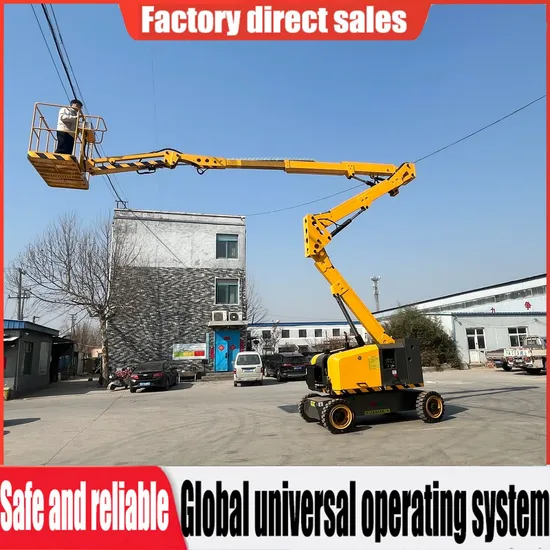

Hydraulic Mobile Boom Lift Curved Arm Electric Self Propelled Articulated Boom Lift

US$15,000.00-137,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SJYZQ
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Boom Lift
Carrying Capacity
230kg/350kg/500kg
Moves
Self-propelled
Driven Type
Diesel or Battery
Running Mode
Moving
Feature
Boom Lift
Certification
CE, ISO 9001
Rotation Angle
360°
Max Climbing Grade
30%
Operator Interface
Pictures for Use Worldwide
Tilt Protection
Have
Overload Protection
Have
Transport Package
Container
Specification
8/10/12/14/16/18/20/22/24/26/28/30M
Trademark
Can be branded
Origin
China
Production Capacity
3000 Units/Year

Packaging & Delivery

Package Size
875.00cm * 220.00cm * 245.00cm
Package Gross Weight
9800.000kg

Product Description

Product Parameters
Model Maximum height
(m)		 load
(kg)		 Table size
(mm)		 External dimensions
(m)		 Maximum external dimensions
(m)		 Weight
(kg)
SJYZQ0.23-8 8 230 1600*800 5.2*1.65*2.35 5.3 4900
SJYZQ0.23-10 10 230 1600*800 5.5*1.65*2.35 5.8 5800
SJYZQ0.23-12 12 230 1600*800 6.3*1.78*2.35 6.9 6596
SJYZQ0.23-14 14 230 1600*800 7.0*1.93*2.35 8 6900
SJYZQ0.23-16 16 230 1800*800 7.18*2.18*2.2 8.9 8550
SJYZQ0.23-18 18 230 1800*800 8.35*2.2*2.63 10.6 9200
SJYZQ0.23-20 20 230 1800*800 8.86*2.25*2.53 11.7 11000
SJYZQ0.23-22 22 230 1800*800 11.2*2.4*3.2 12.2 13200
SJYZQ0.23-24 24 230 1800*800 11.2*2.6*3.2m 12.5 14200
SJYZQ0.23-26 26 230 1800*800 11.5*2.8*3.1m 12.8 16200
SJYZQ0.23-28 28 230 1800*800 12.3*2.8*3.2 13.2 18200
SJYZQ0.23-30 30 230 1800*800 12.8*2.8*3.3 13.6 21000
Optional work platform rotation (± 80 °) + $2000 USD Optional wireless remote control + $3000 USD
You can choose between diesel or battery power at the same price

Detailed Photos

Hydraulic diesel Electric Articulat Self Propelled Boom Lift Hydraulic diesel Electric Articulat Self Propelled Boom Lift Hydraulic diesel Electric Articulat Self Propelled Boom Lift Hydraulic diesel Electric Articulat Self Propelled Boom Lift Hydraulic diesel Electric Articulat Self Propelled Boom Lift
