Intelligent Panel Bender with Automatic Control System Bending Machine

Product Description

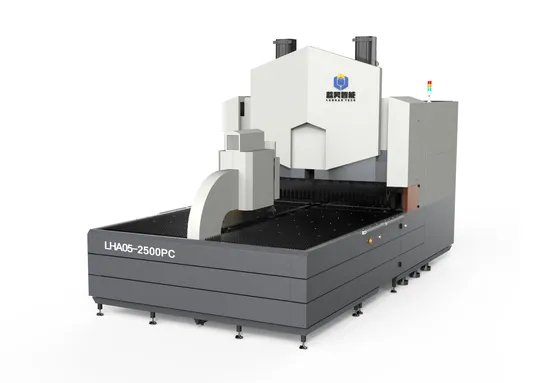

Equipment Outlook Product Introduction
Nanjing Lanhao Intelligent Flexible Bending Center has developed a servo flexible bending center with international advanced level after 5 years of research and development. The products are independently developed from software drivers, hardware circuits to mechanical structures. The customer groups are all over the country, covering a number of Ten industries have won unanimous praise from consumers! The intelligent flexible bending center is a high-tech product developed and produced for the sheet metal industry to improve production efficiency, reduce labor intensity and enhance corporate image. Function Introduction * Industry 4.0 architecture, which can be upgraded smoothly.
* Fast speed, only 0.2 seconds per time.
* Rapid prototyping of sheets, high consistency.
* Low power consumption.
* Simple maintenance and low cost.
* High degree of automation, simple operation, low labor requirements.
* No need for molding, complex shapes (right angles, non-right angles, etc. folded up or down) can be freely designed and produced at any time.
* Applicable to a wide range of materials, mainly stainless steel, cold-rolled sheet, etc.
* Compatible with various loading and unloading methods: manual loading and unloading, self-propelled robotic arm loading and unloading, docking robotic arm loading and unloading are optional.
* Lanhao intelligent bending center has rich software and hardware interfaces, laying a good foundation for intelligent factories.
* The control system realizes 15-axis concurrent linkage in the true sense, the bending action is smooth, and the mechanical operation is highly coordinated.
* The unbalanced load detection system can effectively protect the machine and the sheets.
* The panel thickness detection system can effectively protect the machine and reduce the waste of sheets.
* The cloud operation and maintenance management system can monitor the operation of the machine in real time, and can carry out all-round customized management of the company's business.
* Friendly man-machine interface, easy to understand, flexible programming.
* For sheets with non-standard size, different positioning datums can be selected according to the shape of the sheets, and the shearing error of the sheet is controlled on the first bending edge to ensure the dimensional accuracy after forming. Technical Parameters

LHA-2500PC-03 Technical parameters
Feeding structure	Pressing arm
Work table structure	brush
System minimum accuracy	0.001mm
Max bending speed	0.2 second/time
Max feeding speed	90m/min
Max.bending width	2500mm
Max.Bending size	L 2500mm X W 1250mm
Max. Bending height (The maximum bending height after customization can reach 300mm)	170mm (customizable)
Min. Bending height	3mm
Min.arc radius	0.5mm
Rated power	380V
Motor power	79KW
Average power	About 2.9 KW
Noise	About 50 dB
Machine size	L565cm X W300cm X H340cm
Total weight	About 19 tons
User operating environment	Win7 or above system
Max. Bending width	UTS 515N/mm2 304 stainless steel 1.5mm UTS 410N/mm2 cold panel 2.0mm UTS 265N/mm2 aluminum panel 3.0mm
Min. Panel width	0.35mm
Four side forming min. Inner size	About 140mmx190mm( excluding inverted folded side)
Double side forming min. Inner size	About 140mm
Bending angle	0-180 degree
Axis	15

Function Configuration

LHA-2500PC-03 Main function configuration
High-grade cast body	High-grade QT500-7 and gray iron 250 castings are used to effectively ensure the stability under high tonnage impact force
13-axis concurrent linkage control system	The standard configuration supports 128 axes, and the single control board supports up to 32 axes concurrent linkage, which can realize infinite cascade.
Advanced Instructions	Users can customize the design and control of complex sheets according to their needs.
Arc command	use the arc command directly and input the radius to realize the bending of the arc
Y-axis double lift positioning ruler	The Y-axis double-lifting ruler can automatically clamp and position, which greatly improves the accuracy and consistency of the sheets after forming.
error-proof inspection of panel	When the panel is used incorrectly, the system will automatically give an alarm, which can effectively avoid the damage to the machine due to the wrong use of panel size and type.
Oil supply self-lubricating system	Automatic alarm for oil shortage to ensure safe operation of the machine
Unbalanced load detection system	When the pressing tools pressed down, there are foreign objects at the bottom or other conditions that cause the two sides of the pressing tools to be not on the same horizontal line. At this time, the system warns and terminates the operation to effectively protect the mechanical structure.
Dual C-axis auto follow	The upper and lower pressing tools automatically follow, and repositioning shift according to the shape of the sheets, to realize the bending of the sheets
Panel Thickness Detection System	The thickness of the sheets is detected in real time during the pressing process of the pressing tool. When the actual thickness is inconsistent with the programmed thickness, the system will immediately terminate and give an alarm.
Graphical visualization error detection programming	The user only needs to input the bending size and instructions, the system automatically completes the programming and displays the molding results, and the user can compare to ensure consistency.
Automatic loading and unloading control module	The system reserves a wide range of Industry 4.0 interfaces, which can be connected to the robotic arm to realize automatic loading and unloading. Optional Lanhao self-propelled manipulator, with the same control system as the bending center, no need for second time programming to replace the sheets, the system automatically generates the manipulator action according to the bending instructions, with higher efficiency and better coordination.
High-speed control module	The system can realize collaborative work under high-speed operation
Flattening function	Flatten the sheets
Press the dead edge up and down	Realize the dead edge of the sheets up and down
Handle control	The system has an anti-collision blank holder function, and the user can control each axis to any desired position through the handle control.
Cloud operation and maintenance management interface	It can be connected to the Lanhao cloud enterprise operation and maintenance management system to detect the operation of the machine in real time, and can carry out all-round customized management of the company's business
Automatic production line interface	It can be connected with upstream and downstream production equipment to realize automatic production
Strengthened C axis rotation	The C axis rotation speed and accuracy are improved
Fast release and installation upper blank holder	Fast release and installation type re-tooling
Power horn blank holder	Standard power horn blank holder, effectively avoid scratching and crashing the panel

---
