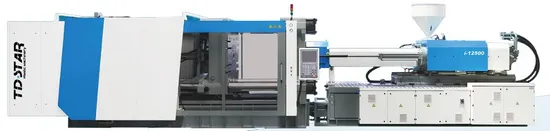

| SPECIFICATION | SM-1200 | ||||
| SCREW TYPE | A | B | C | D | |
| Injection Unit | |||||
| Screw diameter | mm | 100 | 110 | 120 | 130 |
| Screw L/D ratio | L/D | 23 | 21 | 20 | 18.5 |
| Shot volume(theoretical) | CM3 | 4365 | 5282 | 6285 | 7377 |
| Injection weight(PS) | g | 3972 | 4805 | 5720 | 6712 |
| Injection rate | g/s | 694 | 839 | 999 | 1173 |
| Injection pressure | Bar | 2100 | 1735 | 1458 | 1243 |
| Screw speed | rpm | 106 | |||
| Clamping Unit | |||||
| Clamping force | KN | 1200 | |||
| Open stroke | mm | 1250 | |||
| Space between tie-bars(W*H) | mm | 1180*1100 | |||
| Max mould height | mm | 1250 | |||
| Min mould height | mm | 500 | |||
| Ejector stroke | mm | 325 | |||
| Ejector force | KN | 245 | |||
| Others | |||||
| Max pump pressure | Bar | 16 | |||
| Motor pump power | Kw | 36.7+36.7+36.7 | |||
| Heating power | Kw | 60 | |||
| Machine dimension(L*W*H) | M | 11.5*2.6*2.85 | |||
| Oil tank cubage | L | 1500 | |||
| Machine weight | Ton | 55 | |||
| Items | Brand/country | |
| Servo System | Controller | TECHMATION -8' (TAIWAN ) |
| Servo Motor | INOVANCE (CHINA) | |
| Servo Drive | INOVANCE (CHINA) | |
| Oil Pump | ECKERLE (Germany) or SUMITOMO (JAPAN ) | |
| Electric Unit | Stroke transducer | NOVO or FLTCH (Germany) |
| Breaker | Schneider (France ) or LS (Korea ) | |
| Contactor | Schneider (France ) or LS (Korea ) | |
| Air Switch | Schneider (France ) | |
| Location /Speed Sensor | Schneider (France ) | |
| Hydraulic Unit | Hydraulic Direction Valve | YUKEN (Japan) |
| Proportion back-pressure valve | North man (Taiwan) | |
| Plasticizing hydraulic Motor | DAN DUN (ITALY) | |
| Hydraulic Hose | MANULI(ITALY) or GOOD YEAR (USA) | |
| Hydraulic Sealing ring | All Italy and Japan | |
| Others Unit | Mechanical safety | Standard |
| Electric safety | Standard | |
| Mold close fast | Standard | |
| Injection Unit | Linear guide-way | |
| Air core | 1pcs | |
| Hydraulic Core | 1pcs | |
| T slots and screw holes | Standard | |
| Servo system Compared with the other manufacturers is big, Overload ability strong and stable. | ||
