Rg59 Security Cable for Surveillance Camera Monitoring with F Compression Connector

Product Description

Rg59 Security Cable for Surveillance Camera Monitoring with F Compression Connector
Application:Local Communication Cable, Coaxial Cable, LAN Cable
Conductor Material:BC/CCS/CCA/TC/CU/CCAG
Cover Material:PE/PVC
Material Shape:Round Wire
Conductor Type:Solid
Wire Core Material:Bare Copper Wire
Certification:CE, ISO, RoHS, CPR
Model:Rg59
Inner Conductor:CCS, Cu ,CCA,Tc,etc
Insulation:PE,Foaming PE
Shiled:Al Foil,Copper Foil
Braiding Material:Al, CCA,Cu, Tcu etc.
Braiding Coverage:30%, 45%, 60%, 80%, 90% etc.
Jacket:PVC, PE
Color:White, Black, Yellow,Green etc.
Trademark:OEM
Transport Package:Roll,Wooden Spool,Plastic Reel,Gift Box,Pully Box
Specification:Copper or Copper Clad Steel

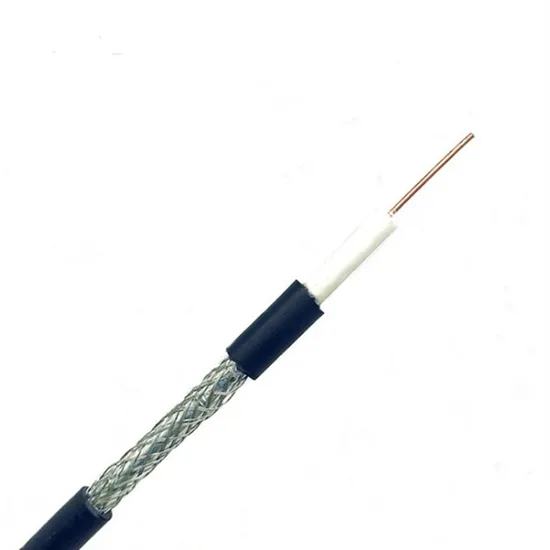

Construction

(1)Center Conductor: 0.81±0.02mm BC

(2)Dielectric: 3.66±0.10mm FPE

(3)Braid: Al Foil + 80*0.16mm Al/Mg

(4)Jacket: 6.10±0.20mm PVC

Inner Conductor:	BC/CCS/CCA/TC/SC Available
Dielectric:	Foam PE/Solid PE
First Shield:	Foil:Copper/ Aluminum Foil,(Un-bonded,Bonded,Double bonded, double un-bonded, Copper colored )
Second Shield:	Al,CCA,BC,TC CCS Available
	Wire Diameter:0.11,0.12,0.15,0.16mm Available
	Braiding Net:32#,48#,64#,80#,96#,112#,128#,144#
Jacket:	PVC/PE (black,white,color)

Characteristics
Impedance:	75+3 Ohm
Capacitance:	53+3pF/m
Velocity of Propagation:	85%
Return Loss:	20dB min (5-2300MHz)

Attenuation:
Frequency (MHz)	Maximum (dB/100 m)
5	2.82
55	6.73
187	11.81
350	15.75
550	19.52
750	22.87
865	24.67
1000	26.64
1450	32.05
1800	35.59
2000	39.04

A.Note:1.BC:Bare Copper CCS:Copper Clad Steel CCA:Copper Clad Aluminum TC :Tinning Copper

2.SC:Silver-Plated Copper

B.Any specification can be designed according to your requirement.

C: Our Packing:

(1)Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll (10m,15m,20m,25,30m,50m,100m)

(2)Inner Packing: Wooden reel, plastic reel,paper reel,and gift box

(3)Outer Packing: Carton box, pully box, pallet available

Note:Any packing available according to your request.

Factory

Company name	HOOHA Co.,Ltd
Established	2003
Main products	upcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
Value added service	Include factory planning, cable raw material supply,cable equipment layout,cable technology export,customer training and cable testing laboratory construction.
Factory location	Humen Town,Dongguan City,Guangdong province.
Manufacturing Center	4000 sqm
Showroom	More than 2000 sqm.

Packaging & Shipping
Two methods: RTA (Ready to assemble, Flat Pack) and fully assembled.
Plywood frames and Stretch film are used to avoid breakage in transit.
FAQ

Question	Answer
MOQ	1 set
Lead Time	30~40 working days since starting producing.
Warranty Time	1-year quality guarantee for the machine
Payment Terms	30% T/T in advance for production material, 70% in the period of shipment.
Installation (3 choices )	a. HOOHA's Chinese installation team.
	b. HOOHA's overseas installation co-partners in your country.
	c. DIY Guide: HOOHA supports online guidance.
How to Start	Contact us and leave your contact email and phone number.

Why choose us?
1.We are the cable equipment manufacturer.
2.Professional engineer,long-term to research and development for to cable equipment .
3.High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .
4.Our machine use the international qualified brand,like siemens ,omron,nsk,lg etc.
5.Technical support and spare parts service.
6.Well-experienced in overseas to support customer with technical,training,operating.
7.Responsible and Good communication and customer service skills,and save time and human cost for customers.
8.Complete Foreign Trade Team.
9.Working efficiently,quickly response to customer needs.
Professional and Strong Manufacture and Sales Team

Team of HOOHA service
Name	education	Position	Mainly responsible for project	Specializing in project	Industry working history ( year )
zanyang Xie	college	General Engineer	The total project design and planning	power cable machine	15
xioahua Hu	college	Vis general engineer	The total project design and planning	net cable,data cable machine	10
Chnaghong Cheng	college	Engineer	Drawings and after-sales service	Optical fiber cable machine	25
xiuwu Chen	college	General Engineer	The total project design and planning	copper drawing machine	15
lixin Yuan	college	Engineer	The project design and planning	coppwer wire making technical	16
zhenghai Qiu	college	cable engineer	After service	cable making and cable factory management servie	15
jinxin Liu	college	Marketing engineer	After service	electrical engineer	7
xingguo Tang	High school	Electrical engineer	After service	electrical engineer	10
changqiang Li	High school	Maintain engineer	After service	machina maintain and install service	10
haipin Li	University	Engineering director	Marketing and sales	project consulting	8
sen Yang	University	Engineering translator	Marketing and sales	project consulting	5

---
