US$1,500.00
|
5 Pieces
(MOQ)
|
Basic Info.
Outer Diameter
2-3/8" ~ 6-5/8"
Production Capacity
150000
Product Description

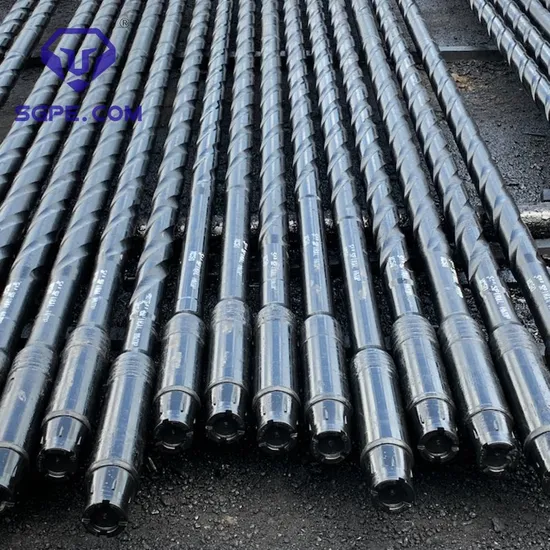

API 5DP Drill Pipe Seamless/Drilling Pipe Discover our high-performance drill pipe for the oil industry. Our API certified, durable, and corrosion-resistant drill pipe is perfect for precision drilling. Choose from a variety of sizes and types, including integral, heavy weight, doublewall, crooked, and bendable pipe. Trust GPE Oil Machinery Co., Ltd as your reliable drill pipe supplier.
API 5DP Drill Pipe - GPE Oil Machinery Co., Ltd
API 5DP Drill Pipe GPE Oil Machinery Co., Ltd offers high-quality API 5DP drill pipe seamless/drilling pipe that complies with the standards set by API SPEC 5DP and API SPEC 7. Our drill pipes are made from steel grades determined by the requirements of Group 1 (Grade E) and Group 3 (Grade X-95, Grade G-105, and Grade S-135) of API SPEC 5DP.
With a focus on customer satisfaction, we provide drill pipe joints at the same level as per our customers' requirements. These joints are manufactured to comply with the provisions under the Standard API SPEC 7.
Welcome to consult, we will provide the most comprehensive technical support! Detailed information on API 5DP drill pipe seamless/drilling pipe Discover our high-performance drill pipe for the oil industry. Our API certified drill pipe is durable, corrosion-resistant, and designed for precision drilling. Choose from a range of options including integral, heavy weight, doublewall, crooked, and bendable pipe drilling. We offer various sizes and thread options to meet your specific needs. Trust GPE Oil Machinery Co., Ltd as your reliable drill pipe supplier.
Size (in) | Nominal Weight (1b/ft) | OD of Pipe Body | Wall Thickness of Pipe Body | Conn. Type | OD of Pin and Box | ID of Pin |
(in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
2 3/8 | 6.65 | 2 3/8 | 60.32 | 0.28 | 7.11 | NC26 (2 3/8 IF) | 3 3/8 | 85.7 | 1 3/4 | 44.45 |
2 7/8 | 10.4 | 2 7/8 | 73.02 | 0.36 | 9.19 | NC31 (2 7/8 IF) | 4 1/8 | 104.8 | 2 | 50.8 |
3 1/2 | 13.3 | 3 1/2 | 88.9 | 0.37 | 9.35 | NC38 (3 1/2 IF) | 5 | 127 | 2 7/16 | 61.91 |
3 1/2 | 15.5 | 3 1/2 | 88.9 | 0.45 | 11.4 | NC38 (3 1/2 IF) | 5 | 127 | 2 1/8 | 53.98 |
4 | 14 | 4 | 101.6 | 0.33 | 8.38 | NC46 (4 IF) | 6 | 154.2 | 3 1/4 | 82.55 |
4 1/2 | 16.6 | 4 1/2 | 114.3 | 0.34 | 8.56 | NC40 (4 IF) | 6 1/4 | 158.8 | 3 | 76.2 |
5 | 19.5 | 5 | 127 | 0.36 | 9.19 | NC50 (4 1/2 IF) | 6 5/8 | 168.3 | 3 1/4 | 82.55 |
5 | 25.6 | 5 | 127 | 0.5 | 12.7 | 5 1/2 FH | 7 1/4 | 184.2 | 3 1/4 | 82.55 |
5 1/2 | 21.9 | 5 1/2 | 139.7 | 0.36 | 9.17 | 5 1/2 FH | 7 1/4 | 184.2 | 3 1/2 | 88.9 |
5 1/2 | 24.7 | 5 1/2 | 139.7 | 0.42 | 10.54 | 5 1/2 FH | 7 1/4 | 184.2 | 3 1/2 | 88.9 |
6 5/8 | 25.2 | 6 5/8 | 168.28 | 0.33 | 8.38 | 6 5/8 FH | 8 1/4 | 209.6 | 4 3/4 | 120.7 |
6 5/8 | 27.7 | 6 5/8 | 168.28 | 0.36 | 9.19 | 6 5/8 FH | 8 1/4 | 209.6 | 4 3/4 | 120.7 |
>>
