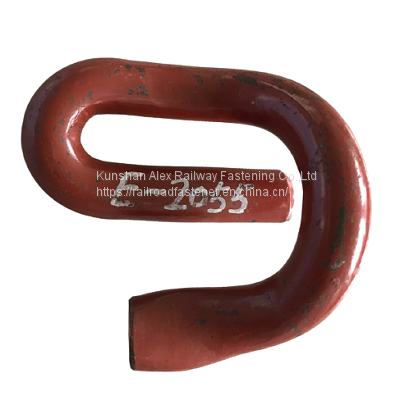

Railway Elastic Clip E2055 used with concrete sleeper to fasten rails on both sides

Product Details

Product Details

Product Description

Product Description
Elastic rail clip is one of the common railway fasteners in the railway system. In general, elastic rail clip is made of forged spring steel and has many applications. No matter as a part of rail fastening system or as a rail fastener, elastic rail clip is used with other railway track parts, such as railroad spike, rail pad, tie plate and plastic dowel.
E type Rail Clip
E rail clip provide positive and durable rail alignment under the harshest working conditions, which extend the life of railway track. Generally, e rail clips are available at the range from 18mm to 23mm diameter. Rail –e clip is usually made of spring steel. As an important type of elastic rail clips, E-rail clip has a lot of sizes, such as E1, E2, E3, E1609, E1809, E1817, E2001, E2006, E2009, E2055, E2056, etc.
E-type Rail clip specification
NameE-type rail clip
Material60Si2MnA 60Si2CrA 55Si2Mn 38Si7
Hardness44-48HRC
Fatigue Lifefor Dia.18 is 3 millions cycles without breaking
for Dia.20 is 5 millions cycles without breaking
Surfaceplain (oiled), Oxide black, color painting or according to customer requirement
StandardDIN17221, BS970, GB/T1222
Main Elastic Rail Clip products:
ModelDiameterWeightMaterial
Type IIIØ180.80kg/pc60Si2MnA
E1609Ø160.43 kg/pc60Si2MnA
E1809Ø200.61kg/pc60Si2MnA
E1813Ø180.62kg/pc60Si2MnA
E2001Ø200.80kg/pc60Si2MnA
E2007Ø200.80kg/pc60Si2MnA
E2009Ø200.80kg/pc60Si2MnA
E2039Ø200.80kg/pc60Si2MnA
E2055Ø200.80kg/pc60Si2MnA
E2056Ø200.80kg/pc60Si2MnA
E2063Ø200.80kg/pc60Si2MnA
PR85 Rail ClipØ130.25kg/pc60Si2MnA
PR309AØ190.85kg/pc60Si2MnA
PR401Ø200.97kg/pc60Si2MnA
PR415Ø200.95kg/pc60Si2MnA
PR601AØ201.03kg/pc38Si7
SKL 1Ø130.48kg/pc60Si2CrA
SKL 3Ø130.48kg/pc60Si2CrA
SKL 12Ø130.53kg/pc38Si7
SKL 14Ø130.53kg/pc60Si2MnA
Special Rail ClipØ130.48kg/pc60Si2MnA
Russia Rail ClipØ180.58kg/pc60Si2MnA
Deenik ClipØ250.49-0.68kg/pc60Si2MnA
Single Anti-TheftØ200.25kg/pc60Si2MnA

Why choose us
01 We are a professional ,manufacturer of Rail clips, we have experiences on producing many kinds of rail clips, we can meet your customized requirements in details.
02 We have workshop, do every step from purchasing material to shipment all by our team, so our prices are the most competitive under same quality.
03 Our lead time can be adjust to match your different schedule of different products. Normally 20-30 days is available in producing, inspection, and packing.
04 We care about the safety of using our products, with all our workers and technicians working together, it is guaranteed that our railway products reach the international standards, such as AREMA,GB, BS, UIC, DIN, etc.
Quality Control
Kunshan Alex Railway Fastening Co., Ltd. is an ISO 9001/2008 certified company. All processes are in accordance with the requirements of the ISO quality management system. From raw material to the finished products, we operate in accordance with standard procedures. We have strict quality control systems for suppliers:
1. Strictly inspection and testing of raw materials
2. Regularly organize quality control coordination meetings with semi-product suppliers to provide technical support.
3.Both sampling and batch testing will be taken while producing to make sure products 100% qualified before shipment.
Certificate:
Other Certificates available on request.
Workshop shown:
Packing for rail screw spikes
1. Woven bags in wooden crate
2. Other ways as per client's requirement
FAQ
Q: Are you manufacturer or trader?
A:We are manufacturer and trader, company located in Kunshan ,Jiangsu Province, China, about 2 hours take taxi from Shanghai airport.
Q: Do you provide samples?
A:Yes, we offer sample for approval before each order.
Q: What's your payment term?
A: 30% deposit by T/T , balance against B/L copy, Payment term is negotiable based on different order products and quantity.
Q: How long is your delivery time?
A: Generally 20-30 working days after receiving deposit or the original L/C. Could be re-schedule under really urgent case.
Q:Can we visit your factory?
A:Of course, you're warmly welcomed. Once we have your schedule, we can arrange everything in advance.
Contact details:
If you have any other questions, pls feel free to contact us as below:
Company name: Kunshan Alex Railway Fastening Co., Ltd.
Address: No.1255 Chengbei Road, Yushan town, Kunshan City, Jiangsu Province, China.
Tel: 0086 512-83639017
Fax: 0086 512- 83639019
